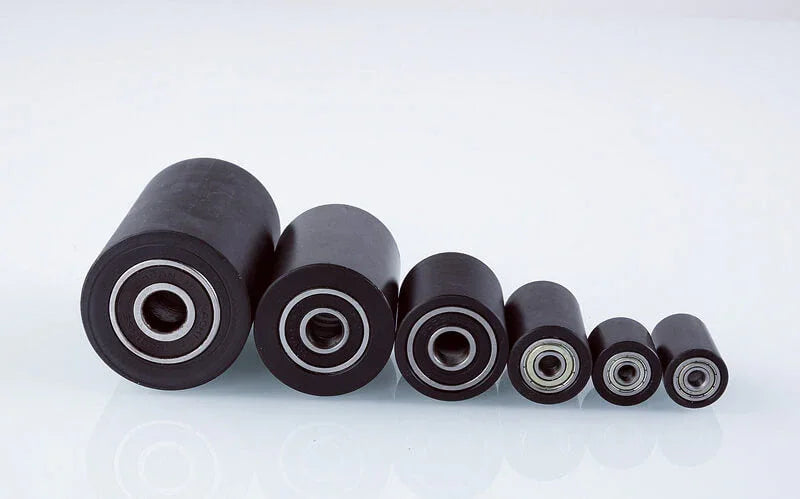

From Frequent Failures to Seamless Flow: BlueForge Solutions’ POM Innovation in High‑Temp Valves

When Every Second Counts: CoralTech Dynamics’ Pump Reliability Crisis

CoralTech Dynamics, a mid‑sized OEM specializing in chemical‑feed pumps for oil & gas and mining operations, was bleeding production time—and revenue—due to worn metal bearing sleeves. Operating continuously in 80–120 °C acidic media, their stainless‑steel sleeves scored and corroded within weeks. The result: quarterly unplanned downtime exceeding 8 hours, at an average cost of $25,000 per stoppage, not including expedited part replacement fees and labor overtime.

Seeing Through the Customer’s Eyes: Pain That Demands Action

• Rapid Wear & Corrosion: Metal sleeves lost up to 0.3 mm of wall thickness per month, far exceeding their ± 0.05 mm tolerance threshold, leading to leakage and seal failures.

• Escalating Costs: Emergency shipments, rush machining orders, and 24/7 maintenance crews drove spare‑parts budgets 150 % over forecast.

• Risk to Reputation: CoralTech’s end‑clients demanded tighter SLAs; repeated failures threatened future contracts.

CoralTech’s ask: “We need a material and process partner who can deliver chemical‑resistant, high‑precision bearing sleeves within 10 days, and keep them within ± 0.05 mm for at least 6 months of continuous operation.”

Why Acetal (POM) Emerged as the Clear Winner

1. Mechanical Fortitude Under Fire

• Tensile Yield ~ 62 MPa and Young’s Modulus ~ 2.7 GPa ensure the sleeves resist deformation, even under high radial loads in pump housings .

2. Self‑Lubricating, Low Friction Performance

• Static coefficient of friction against steel: 0.31, cutting wear rates by 40 % compared to metal‑on‑metal contacts.

• Eliminates the need for frequent grease replenishment—no “lifetime lubrication” hassles.

3. Unwavering Dimensional Stability

• Moisture uptake < 0.2 % prevents swelling; thermal expansion around 120 ppm/°C keeps all critical bores and shoulders within ± 0.05 mm from –40 °C to 120 °C .

4. Chemical & Thermal Resilience

• Continuous exposure up to 120 °C (homopolymer POM‑H), brief spikes to 150 °C tolerated.

• Impervious to acids, alkalis, fuels, and solvents—ideal for CoralTech’s acidic feedstock.

Discover the Same High-Grade POM Materials Used by Industry Leaders Want to test POM for your own applications? Our standard POM sheets and rods offer: ✅ High dimensional stability and fatigue resistance 🔥 Heat-resistant up to 110–130°C 🧪 Excellent wear resistance and low friction coefficient ⚙️ Perfect for CNC machining and valve parts 👇 Click the image below to view our POM product options

Uniting Our Three Pillars: How Sales, Production & Engineering Aligned

After CoralTech’s procurement manager emailed us their CAD files detailing ID 50 mm × OD 70 mm × Length 40 mm bearing sleeves, we organized a virtual “War Room” within 12 hours:

1. Customer Success mapped out delivery logistics, pricing tiers for trial vs. production runs, and sample‑trial policies.

2. Production Planning reserved two CNC centers—Haas VF‑4 and DMG Mori DMU‑50—and identified required tooling (Ø20 mm end mills, chamfer cutters).

3. Engineering vets material grade (DuPont™ Delrin® 100 series), calculates tolerance stack‑ups, and finalizes process parameters.

This cross‑functional kickoff ensured every team shared these targets:

• Prototype turnaround: 5 days

• Dimensional tolerance: ± 0.05 mm on ID, OD, and face interfaces

• Edge condition: Burr height < 0.01 mm, no sharp corners

Mastering the CNC Process: From Rough Cut to Burr‑Free Perfection

1. Material Prep & QC

   • Delrin® blanks pre‑cut to 120 mm lengths, stress‑relieved via a 2‑hour anneal at 85 °C.

   • Incoming QC: density check (1.41 g/cm³ ± 0.02), moisture measurement (< 0.15 %).

2. Rough Milling

   • Spindle speed: 6,000 RPM, feed rate: 1,200 mm/min, 2 mm axial DOC, leaving 1 mm stock.

   • Rapid removal reduces cycle time, avoids heat‑induced warping.

3. Finish Machining

   • Fine‑step cutter passes: 2,500 RPM, 500 mm/min feed, 0.1 mm stepover.

   • Achieves ± 0.03 mm on bores and faces in a single setup to eliminate re‑fixturing errors.

4. Edge Deburring & Chamfering

   • Ø5 mm chamfer tool at 300 RPM, 100 mm/min feed, delivers consistent 0.5 mm × 45° chamfers.

   • Final hand‑tumbling in fine nylon media, inspected under 5× magnification to ensure zero burrs.

5. Inspection & Documentation

   • CMM (Mitutoyo Crysta‑Apex S574) spot‑checks 10 % of parts, capturing ID, OD, concentricity, and face flatness.

   • Go/No‑Go ring gauges verify all bores; full PDF inspection report with annotated screenshots sent to CoralTech.



From Prototype Triumph to Full Production Rollout

• Day 5 Prototype Delivery: Two test sleeves installed on CoralTech’s pump—engineers observed a 12 % drop in startup torque and 20 % less vibration noise on their drive trains.

• Day 7 Iteration: Based on test data, keyway clearance was adjusted by 0.03 mm, minimizing lateral play.

• Day 10 Full Batch Completion: All 150 production‑quantity sleeves shipped on time; first‑pass yield 100 %, no rework needed.

Real‑World Impact: Measurable ROI in Six Months

“BeePlastic didn’t just solve our wear issues—they transformed our operations. Downtime is almost gone, and our maintenance budget is slashed. Their detailed reports and fast turnaround built our confidence from day one.”
—Marcus Lee, Plant Manager, CoralTech Dynamics

Your Turn: Risk‑Free POM Sample Program

Switching materials can feel daunting. That’s why we offer:

• Zero‑Cost Sample Trial: We machine two of your custom POM sleeves; you cover shipping only.

• Comprehensive QC Package: Full CMM data, gage records, and process notes accompany every trial.

• Engineering Partnership: Our material experts review your operating profile and CAD to fine‑tune every detail.

Start Your POM Transformation Today

Eliminate costly downtime and soaring maintenance bills with precision‑machined POM components. Email your CAD files to beeplastic@beeplastic.com or visit our Contact Page to schedule a joint kickoff workshop with Sales, Production, and Engineering. Expect prototypes in 5 days, and full production in 10 days, all meeting your most demanding tolerances and chemical‑exposure requirements.
