PVDF Ozone Check Valve (Non-Return) – NPT/BSP 1/4–3/4 in
Standard shipping included
Quality issue support
Fast & reliable support
Secure payment
Standard shipping is included in the price of listed standard-size products. Contact us for expedited shipping or delivery arrangements for custom or oversized orders. Returns are accepted for quality problems under our refund policy, without limiting applicable statutory rights.
%20%E2%80%93%20NPT/BSP%201/4%E2%80%933/4%20in){kind=link}

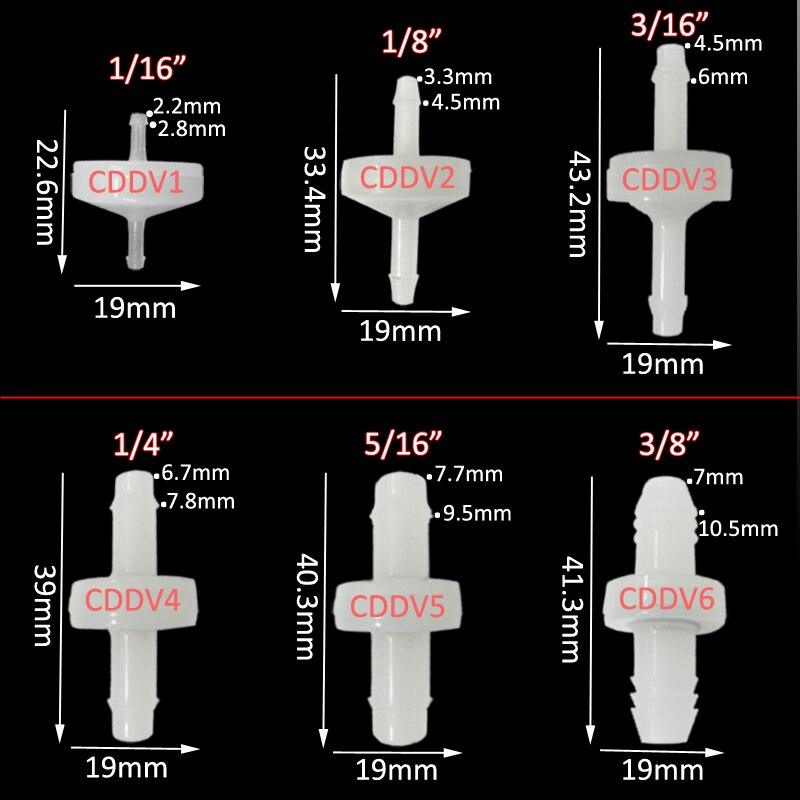

- CDDV4 - $26.44
- CDDV1 - $26.44
- CDDV2 - $26.44
- CDDV3 - $26.44
- CDDV5 - $26.44
- CDDV6 - $26.44
PRODUCT DETAILS
PVDF Ozone Check Valve (Non-Return) — NPT/BSP 1/4"–3/4" | BeePlastic
Engineering-grade PVDF check valve for ozone service — inline non-return with NPT/BSP female threads (1/4", 3/8", 1/2", 3/4") and low cracking design. Ideal for ozone generator gas lines, distribution manifolds, and water treatment loops.
Why BeePlastic for Ozone-Ready Non-Return Valves
- Materials breadth: PVDF/PP/PTFE/PEEK for one-stop sourcing.
- Custom machining: thread standard, opening pressure, seal material — made to spec.
- Save your budget: fast sizing, bulk discounts, robust packaging to reduce losses.
- Pragmatic guidance: we confirm fit with your operating conditions before purchase.
Product Overview
Features
- PVDF body & internals for ozone compatibility
- Low cracking pressure for small-flow stability
- NPT/BSP female threads (1/4"–3/4")
- Inline, leak-tight non-return design
Advantages
- Resists oxidative attack, reduces maintenance
- Consistent open/close→ protects generators & instruments
- Easy retrofit to US/EU standards
Your Benefits
- Lower lifetime cost via longer service life
- Fewer failures, less downtime
- One supplier for valve + plastics → faster procurement
Sizes, Threads & Seal Options
NPT 1/4"
Seal: EPDM / PTFE
NPT 3/8"
Seal: EPDM / PTFE
NPT 1/2"
Seal: EPDM / PTFE
BSP 1/4"
BSPP/BSPT on request
BSP 3/8"
EPDM / PTFE
BSP 1/2"
EPDM / PTFE
Optional 3/4"
NPT or BSP · consult stock
Technical Specifications
Construction
- Type: Inline check valve (non-return)
- Body/Internals: PVDF
- Seals: EPDM or PTFE
- Flow Direction: arrow on body
Connections
- Thread: NPT or BSP (female)
- Ports: 1/4", 3/8", 1/2", 3/4"
- Install: inline; horizontal preferred
Ratings & Use
- Temperature: up to 140 °C (seal-dependent)
- Working Pressure: size & temperature dependent
- Media: ozone (dry/wet), air, water
Share your duty point (temperature, pressure, dry/wet ozone) and we will confirm suitability before you buy.
Typical Applications
Need Help Sizing Your PVDF Ozone Check Valve?
Tell us: NPT/BSP · 1/4"–3/4" · EPDM/PTFE · Temp/Pressure · Dry/Wet ozone
FAQs — PVDF Non-Return Valve for Ozone
Is it suitable for dry or wet ozone?
Yes. Use EPDM or PTFE seals. For wet ozone/oxidant-rich water, EPDM/PTFE is recommended.
NPT vs BSP — are they interchangeable?
No. NPT (US tapered) and BSP (BSPP/BSPT) have different thread forms. Match your system standard.
Will cracking pressure affect small flows?
It’s a low-opening design; exact value varies by size. For micro-flows, ask for a lower-opening option.
Can it handle high temperature and pressure together?
Use temperature–pressure derating. Share your duty point and we’ll confirm suitability.
Get a Recommendation & Quick Quote
Brand: BeePlastic
REVIEWS
SHIPPING & RETURNS
Shipping
Standard shipping is included in the price of listed standard-size products. For expedited shipping, custom or oversized orders, or a delivery deadline, contact us to confirm available arrangements and any additional charges before ordering. See our shipping policy for details.
Returns and quality problems
Our voluntary return policy covers quality problems; we do not offer change-of-mind returns. This does not limit applicable statutory rights, including withdrawal rights for eligible consumer purchases. For the return process and eligibility, see our refund policy.
If an item is defective, damaged or incorrect, email beeplastic@beeplastic.com with your order number, a description and clear photos. Please contact us before shipping an item back.
CUSTOM FABRICATION
Can't Find the Right Size or Specification?
Send your drawing or dimensions, material grade if known, quantity and intended use. We review feasibility and confirm the specification for each quoted project.
Project Requirements
Identify the critical dimensions, tolerances, surface finish and inspection requirements. Any required food-contact, ESD, flame-retardant or other compliance documents should be specified so availability can be checked. Material names alone do not establish these properties.
Custom Order Process
Submit the requirements for review. The quotation will identify the agreed specification, quantity, production lead time and inspection requirements. Shipping method, shipping charges and tax responsibilities are confirmed separately from production timing. Approve the final quotation and specification before ordering.
Send Your Drawing or Requirements
Use the enquiry form to send your project details and a file link, or email drawings to beeplastic@beeplastic.com. Include the product and specification. If the material grade or tolerance is uncertain, describe the intended use for review.
