UHMW-PE CNC MACHINING & CUT-TO-SIZE

Custom UHMW-PE Machining for Wear Parts

Need a chain guide, wear strip, slide pad or custom component? Send your drawing, quantity and application requirements for a project-specific machining quote.

Request a UHMW-PE Quote Email Your STEP / PDF Drawing

For drawing files, attach your STEP/STP model and PDF drawing in an email to beeplastic@beeplastic.com. Include quantity, material requirements and delivery country.

Buying material rather than a finished part? Browse listed UHMW-PE sheets, rods and parts.

What to Send for an Accurate Quote

Share the details that affect material selection, machining and delivered cost. If a requirement is undecided, tell us what the part needs to do.

Drawing & Quantity

Send a STEP/STP model with a PDF drawing where available, or a dimensioned drawing for a simple part. Include quantity and whether this is a prototype, replacement or repeat order.

Material & Application

Specify the grade and color if known. Describe operating temperature, load, sliding contact, chemicals and any food-contact or material documentation requirements.

Dimensions & Delivery

Mark critical fits, holes, flatness, surface finish and inspection conditions. Include delivery country, postal code and required arrival date.

Tolerances and timing are confirmed for your part. UHMW-PE dimensions can change with temperature and machining conditions. Highlight the features that matter to assembly so the accepted tolerances, inspection requirements and delivery plan can be agreed in the quotation.

UHMW-PE Parts to Discuss with Your Drawing

UHMW-PE is commonly considered for wear and sliding applications. The shape, mating component and operating conditions determine whether it suits your part.

Conveyor chain supported by a green plastic guide

Guides & Wear Strips

Conveyor chain guides, guide rails and sliding profiles. Specify the contact profile, mounting-hole positions, overall length and the mating chain or component.

Black shaped blocks with slots and drilled holes

Slide Pads & Wear Blocks

Wear plates, slide pads and support blocks. Identify load-bearing surfaces, fastener details, allowable movement and any flatness requirements.

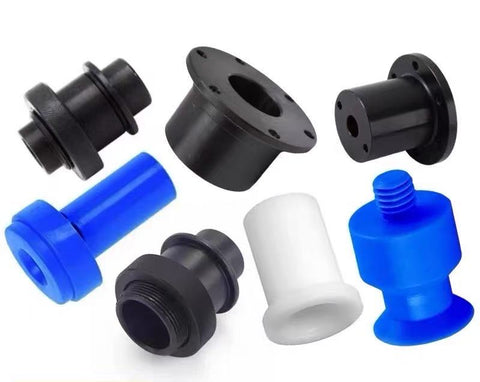

Turned sleeves and flanged bushings in black, blue and white

Bushings & Custom Profiles

Sleeves, spacers and shaped components. Mark critical bore and shaft fits, wall thickness, counterbores and the dimensions that control assembly.

Choose a Finished Part or Listed Material

Custom Machining

Use a drawing-based quote when you need a completed component with holes, pockets, slots, contours or specified fits. The quotation should identify material, machining scope, inspection requirements, quantity and delivery terms.

Request a custom machining quote

Sheets, Rods & Listed Parts

Use the collection to review the sizes and options actually listed for sale. A listed material price applies to that specification; additional machining needs a separate scope and quote. Confirm availability and dispatch timing before committing to a required arrival date.

View listed UHMW-PE materials

Material Selection and Machining Considerations

Temperature & Fit

Account for thermal expansion in long parts, close fits and mounting arrangements. Provide operating and inspection temperatures when dimensions are critical. A blanket tolerance is not appropriate for every UHMW-PE geometry.

Load & Wear Conditions

Consider sustained load, creep, sliding speed, abrasive material and the mating surface. Wear life and friction vary with the grade and application; a material-family comparison alone cannot predict service life.

Chemicals & Environment

Name the chemical, concentration, temperature and exposure time. For outdoor, electrical or food-contact use, specify the additional requirements so the proposed grade and documentation can be reviewed.

Joining is a separate engineering requirement. If your part requires bonding, welding or a large assembly, describe the joint and loading conditions. UHMW-PE is difficult to bond; confirm a suitable joining method rather than assuming a general plastic process will work.

Specify the Grade and Documentation You Need

UHMW-PE, UHMWPE and PE-UHMW refer to the material family. The exact grade, additives and supply documentation matter to performance and application suitability.

Industrial Requirements

State the required material standard or trade grade if specified on your drawing. For anti-static, UV-stabilized, conductive or detectable material, identify the required property or test method. Color alone does not establish these properties.

Food Contact or Other Regulated Use

Specify the applicable requirement and the material documents you need before ordering. Food-contact suitability is grade-specific. Medical use needs a separate assessment; virgin resin or a white color alone does not establish medical suitability.

Material reference: Celanese UHMW-PE polymer guide. Published guidance describes the material family; the quotation confirms the actual material proposed for your project.

Material Forms & Component Examples

Review guide profiles, shaped components and material forms for your project. Send your drawing to confirm the material grade, dimensions and application requirements.

Long green and white wear strips and guide profiles — Wear strips & guide profiles

Colored profiles, guide blocks and shaped plastic components — Profiles & shaped components

Bottling conveyors with plastic guide components — Bottling conveyor applications

Packaging and container conveyor application examples — Packaging conveyor applications

Assorted curved guide components, profiles and blocks — Curved guides & blocks

Long green, white and black channel guide profiles — Channel guide profiles

Colored plastic rods and rectangular sheet stock — Rods & sheet stock

Assorted colored flat sheets and plates — Sheet & plate options

Black round rod resting on a white plate — Rod & plate material forms

Assorted colored plastic sheets and plates — Colored sheet stock

Black flanged round bushings and sleeves — Flanged bushings

White polymer granules beside colored plates and rods — Granules, plates & rods

Examples of turned components, drilled blocks and shaped profiles — Machined component shapes

Discuss your UHMW-PE part and request a quote.

From Your Drawing to a Confirmed Order

Send the requirements. Email the drawing, quantity, application and delivery details, or use the existing contact page to start the discussion.
Confirm the manufacturing scope. Review material, critical dimensions, inspection requirements and any questions affecting the part.
Review the quotation. Confirm the agreed specification, price, production timing and delivery terms before placing the order.
Agree the acceptance requirements. Identify any dimensional report or material documents required with the parts before production.

UHMW-PE Machining Questions

What tolerance can you hold on my part?

It depends on the feature, part size, geometry and material grade. Mark critical fits and inspection conditions on the drawing. Accepted tolerances and any limitations are confirmed in the quotation; one tolerance should not be assumed across all features.

Can I request a prototype or small quantity?

Include the quantity you need, even for a single prototype. Minimum quantity, setup costs and production feasibility are reviewed for the specific part, material and process.

What if I do not have a STEP file?

A dimensioned PDF drawing may be enough for a simple part. For a replacement, include photographs and the dimensions that control assembly. If geometry is incomplete, any additional drawing work and its scope must be agreed before manufacture.

Is the material suitable for food contact?

Specify the applicable food-contact requirement and requested documents. Suitability must be confirmed for the actual grade and application; it cannot be inferred from the UHMW-PE name, virgin resin or color alone.

How long will production and delivery take?

Include the required arrival date and destination. Timing depends on material availability, quantity, geometry, inspection and transport. Production and shipping assumptions are confirmed with the quotation.

How do I send my drawing?

Attach your STEP/STP model and PDF drawing in an email to beeplastic@beeplastic.com. Add quantity, material requirements, critical dimensions and delivery country. The contact-page button starts an inquiry; drawing files should be attached to your email.

Ready to Quote Your UHMW-PE Part?

Send the drawing and the requirements that matter to your application. Start with the part, quantity and delivery country if the full specification is still being prepared.

Request a UHMW-PE Quote Email Your Drawing

beeplastic@beeplastic.com
