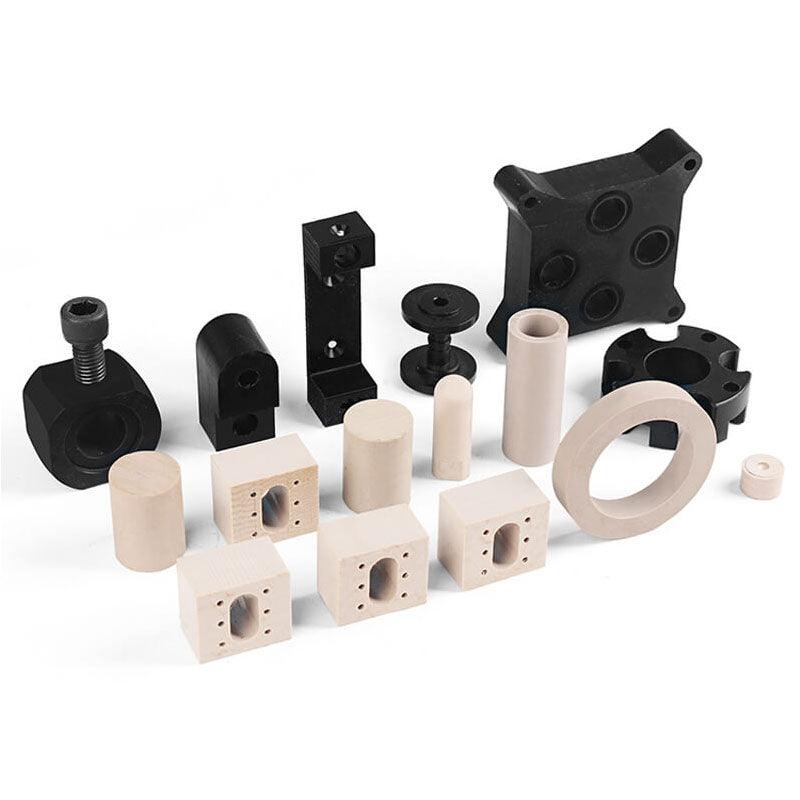

PEEK material
20,Jul 2024

Top Benefits of PEEK Sheets for Electrical and Electronics Manufacturing

Discover the Top Benefits of PEEK Sheets for Electrical and Electronics Manufacturing

In the ever-evolving world of electrical and electronics manufacturing, PEEK sheets stand out as a high-performance material offering unmatched advantages. This post dives deep into the thermal stability and high-temperature performance of PEEK, crucial for ensuring reliable operation under extreme conditions. Explore how PEEK's electrical insulation properties make it ideal for use in insulators, maintaining safety and efficiency even at elevated temperatures.

🎉🎉🎉Limited Time Offer Use code: QR4GNY08SHVR at checkout and enjoy a special discount on your entire order! 👉 PEEK plastic

PEEK sheets

We also cover PEEK’s exceptional chemical resistance and durability, making it perfect for environments exposed to harsh chemicals and reducing maintenance costs significantly. Learn about the mechanical strength and wear resistance of PEEK sheets, which contribute to their long lifespan and robustness in high-wear applications.

Safety is paramount, and PEEK’s inherent flame retardancy and low smoke emission make it a top choice for electronic devices requiring stringent fire safety standards. Additionally, PEEK sheets are highly machinable, allowing for precise and intricate designs essential for advanced electronic components.

Finally, discover specific applications of PEEK in high-frequency and high-performance electronics, such as semiconductor manufacturing, where its properties enhance performance and reliability. This comprehensive guide will equip you with the knowledge to leverage the top benefits of PEEK sheets in your manufacturing processes.

By understanding these advantages, you can make informed decisions about incorporating PEEK sheets into your electrical and electronics manufacturing projects, ensuring superior performance and reliability.

Thermal Stability and High-Temperature Performance of PEEK Sheets

Understanding the Heat Resistance of PEEK

PEEK (Polyetheretherketone) is renowned for its exceptional thermal stability, making it an invaluable material in the manufacturing of electronic components that are subjected to extreme temperatures. This high-performance thermoplastic can consistently withstand high temperatures up to 260°C (500°F) and even higher for short periods without losing its mechanical integrity.

How PEEK Maintains Performance Under Heat

The ability of PEEK to maintain its properties at elevated temperatures is largely due to its high glass transition temperature (around 143°C) and melting point (approximately 341°C). These characteristics ensure that PEEK does not undergo significant thermal deformation even when used in harsh thermal environments.

Benefits of High Thermal Stability

Reliability in High-Temperature Applications

The high thermal stability of PEEK sheets ensures that electronic components can operate reliably under extreme conditions without degradation. This is crucial for applications in sectors such as aerospace, automotive, and industrial manufacturing, where components often encounter high operational temperatures.

Mechanical Strength at Elevated Temperatures

PEEK maintains its mechanical strength at elevated temperatures, which includes properties such as high tensile strength, modulus of elasticity, and creep resistance. This makes PEEK an ideal material for precision parts that require both high strength and stability under thermal stress​.

Applications of PEEK in High-Temperature Environments

Aerospace and Automotive Industries

In the aerospace and automotive industries, PEEK is used for components such as engine parts, brake systems, and thermal shields. Its ability to withstand high temperatures without losing performance ensures the longevity and reliability of critical components.

Semiconductor Manufacturing

In semiconductor manufacturing, PEEK is employed for wafer carriers and other high-precision components. Its thermal stability ensures that these components do not deform during the high-temperature processes involved in semiconductor fabrication​.

Conclusion

The thermal stability and high-temperature performance of PEEK sheets make them indispensable in various high-stress applications. Their ability to maintain mechanical integrity under extreme conditions ensures reliability and efficiency, making PEEK a preferred material in many advanced engineering fields.

high-temperature performance of PEEK sheets

Electrical Insulation Properties of PEEK Sheets

High Dielectric Strength of PEEK

PEEK sheets exhibit high dielectric strength, making them an ideal choice for insulators in electronic applications. Dielectric strength refers to the maximum electric field that a material can withstand without breaking down. For PEEK, this means it can handle high voltages without losing its insulating properties, ensuring safety and reliability in various electronic components​.

Maintaining Insulation at Elevated Temperatures

Thermal Stability and Insulation

One of the standout features of PEEK is its ability to maintain its insulating properties even at elevated temperatures. This is crucial for electronic applications where components are often subjected to high thermal stress. The stability of PEEK's molecular structure allows it to perform reliably, preventing electrical failures and ensuring continuous operation of electronic devices.

Applications in High-Temperature Environments

In high-temperature environments, such as those found in aerospace and automotive industries, PEEK insulators are essential. These insulators protect sensitive electronic components from thermal degradation and electrical breakdown, ensuring the longevity and reliability of the entire system. Components such as connectors, cable insulations, and high-frequency transformers benefit greatly from the use of PEEK due to its exceptional thermal and electrical properties​.

Safety and Reliability of PEEK Insulators

Chemical and Radiation Resistance

Apart from its thermal stability, PEEK also boasts excellent resistance to chemicals and radiation. This makes it suitable for environments where it might be exposed to harsh chemicals or high levels of radiation. The ability to maintain its dielectric strength under these conditions further enhances its reliability and safety as an insulating material in critical electronic applications​.

Mechanical Properties and Durability

The mechanical properties of PEEK contribute to its effectiveness as an insulator. It has high tensile strength and rigidity, which means it can withstand mechanical stress without compromising its electrical insulating capabilities. This durability ensures that PEEK insulators remain effective over long periods, even in demanding applications.

PEEK in Cutting-Edge Electronics

Innovative Applications

With the advancement of electronics and semiconductor manufacturing, the demand for materials that can provide both high performance and reliability is increasing. PEEK sheets are being used in the latest electronic devices, from smartphones to high-performance computing systems, due to their unique combination of electrical, thermal, and mechanical properties. This makes PEEK a material of choice for engineers looking to design cutting-edge, reliable electronic components.

PEEK sheets offer unparalleled electrical insulation properties, high dielectric strength, and the ability to maintain performance under extreme conditions. This makes them indispensable in various electronic applications, ensuring safety, reliability, and efficiency in some of the most demanding environments.

PEEK material automotive parts

Chemical Resistance and Durability of PEEK Sheets

Exceptional Chemical Resistance

PEEK sheets are renowned for their resistance to chemicals, solvents, and hydrolysis, making them an ideal choice for environments where exposure to harsh substances is common. PEEK can withstand aggressive chemicals, including strong acids, bases, and organic solvents, without degrading. This resistance is crucial for applications in the chemical processing, oil and gas, and pharmaceutical industries, where components are frequently exposed to corrosive materials​.

Long-Term Durability in Harsh Conditions

High Resistance to Hydrolysis

One of the standout features of PEEK is its resistance to hydrolysis. This means it can maintain its properties even when exposed to high humidity or immersed in water for prolonged periods. This makes PEEK sheets particularly suitable for marine applications and wet environments, ensuring the reliability of components that must operate in such conditions.

Durability Against Solvents and Chemicals

PEEK's durability extends to its resistance to a wide range of solvents and chemicals. Unlike many other polymers, PEEK does not degrade or lose its mechanical properties when exposed to substances like hydrocarbons, alcohols, and ketones. This robustness makes it an excellent choice for seals, gaskets, and valves in chemical processing equipment, where long-term exposure to aggressive chemicals is common​.

Impact on Maintenance and Longevity

Lower Maintenance Costs

The chemical resistance and durability of PEEK sheets directly contribute to lower maintenance costs. Components made from PEEK do not require frequent replacement or repair, even in the most challenging environments. This reduces downtime and maintenance expenses, making PEEK a cost-effective material for high-performance applications.

Extended Lifespan of Electronic Components

The exceptional durability of PEEK ensures that electronic components can withstand harsh conditions over extended periods. In environments with high chemical exposure, such as semiconductor manufacturing and industrial electronics, PEEK components continue to perform reliably, enhancing the overall longevity of the equipment. This makes PEEK sheets a preferred material for engineers looking to maximize the lifespan and reliability of their designs.

Applications in High-Chemical-Exposure Environments

Chemical Processing Equipment

In the chemical processing industry, PEEK is used for various components such as pumps, valves, and seals. Its resistance to a broad range of chemicals ensures that these components can operate without degradation, maintaining the efficiency and safety of chemical processing systems​.

Oil and Gas Industry

The oil and gas industry also benefits from the chemical resistance of PEEK. Components such as drill heads, seals, and sensor housings made from PEEK can withstand the harsh chemical environments typical in oil and gas exploration and production, providing reliable performance and reducing the need for frequent maintenance.

PEEK sheets offer unparalleled chemical resistance and durability, making them essential for applications in environments with high chemical exposure. Their ability to maintain performance under harsh conditions ensures the longevity and reliability of components, leading to lower maintenance costs and improved operational efficiency across various industries.

Chemical solvents

Mechanical Strength and Wear Resistance of PEEK Sheets

High Tensile Strength and Stiffness

PEEK sheets are celebrated for their high tensile strength and stiffness, which are crucial for components subjected to significant mechanical stress. With a tensile strength often exceeding 90 MPa, PEEK provides robust mechanical performance, making it suitable for demanding applications where reliability and durability are paramount.

Applications Requiring High Mechanical Strength

In industries such as aerospace and automotive, components often encounter heavy loads and high stress. PEEK excels in these environments due to its superior mechanical properties. For instance, parts such as engine components, gears, and brake systems benefit from PEEK's high tensile strength and stiffness, ensuring they can withstand the operational demands without deforming or failing.

Wear Resistance and Durability

Reduction of Frequent Replacements

PEEK sheets possess outstanding wear resistance, significantly reducing the need for frequent replacements in high-wear applications. This characteristic is particularly important in environments where components are subjected to constant friction and wear. PEEK's wear resistance ensures that parts such as bearings, seals, and sliding elements maintain their integrity and functionality over prolonged periods​.

Cost-Effectiveness through Longevity

The durability of PEEK directly translates to cost-effectiveness. Components made from PEEK require less frequent maintenance and replacement, thereby reducing downtime and maintenance costs. This long-term durability makes PEEK an attractive option for industries focused on maximizing operational efficiency and minimizing costs.

Enhanced Mechanical Properties with Fillers

Reinforced PEEK Grades

PEEK can be enhanced with fillers such as carbon fibers and glass fibers to improve its mechanical properties further. These reinforced grades offer higher tensile strength, greater stiffness, and improved wear resistance, making them ideal for applications requiring exceptional performance. For example, carbon fiber-reinforced PEEK is often used in aerospace and medical devices due to its superior strength and rigidity​.

Applications of Reinforced PEEK

In the automotive industry, glass fiber-reinforced PEEK is utilized for transmission components and under-the-hood applications due to its ability to withstand high temperatures and mechanical stress. Similarly, in the medical field, PEEK's biocompatibility combined with its mechanical strength makes it suitable for implants and surgical instruments.

Implantable PEEK

Key Benefits in Industrial Applications

Industrial Machinery

In industrial machinery, PEEK components such as valves, pumps, and compressors benefit from its mechanical strength and wear resistance. These components operate under high stress and often in corrosive environments, where PEEK's properties ensure long-lasting performance and reliability.

Semiconductor Manufacturing

Semiconductor manufacturing also leverages PEEK's mechanical properties. Components such as wafer carriers and insulators need to maintain precise tolerances and withstand the mechanical stresses of the manufacturing process. PEEK's high strength and wear resistance ensure these components function effectively without frequent replacements.

PEEK sheets offer unparalleled mechanical strength and wear resistance, making them essential for high-stress and high-wear applications across various industries. Their ability to withstand mechanical stress and reduce the need for frequent replacements contributes to their widespread use in critical and demanding environments.

Flame Retardancy and Low Smoke Emission of PEEK Sheets

Inherent Flame Retardancy

PEEK sheets are known for their inherent flame retardancy, making them a critical material in applications where fire safety is paramount. PEEK has a V-0 rating according to the UL94 flammability standards, indicating that it can withstand flames for a specified period without burning. This property is particularly important for components used in electronic devices, where the risk of fire must be minimized to ensure user safety and protect sensitive equipment.

Low Smoke and Toxic Gas Emission

Safety in Fire Situations

One of the standout characteristics of PEEK is its low smoke and toxic gas emission when exposed to fire. Unlike many other polymers, PEEK emits very little smoke and produces minimal toxic gases such as carbon monoxide and hydrogen cyanide. This significantly reduces the risk of harmful exposure during a fire, enhancing the safety of environments where PEEK components are used, such as in aerospace, automotive, and building construction.

Meeting Stringent Fire Safety Standards

The ability of PEEK sheets to meet stringent fire safety standards is crucial for industries that demand the highest levels of safety and performance. For example, in the aerospace industry, materials must pass rigorous fire safety tests to be certified for use in aircraft interiors. PEEK’s low flammability and reduced smoke and toxic gas emissions help it comply with these strict regulations, ensuring that it can be used safely in critical applications such as aircraft cabin components and insulation materials.

PEEK sheets

Applications Benefiting from Flame Retardancy

Electronic Devices and Enclosures

In electronic devices, the flame retardancy of PEEK is vital for protecting both the device and the user. Components such as circuit boards, connectors, and housing enclosures made from PEEK can prevent the spread of fire within the device, minimizing damage and enhancing user safety. The low smoke emission also ensures that visibility and air quality are maintained, reducing the risk of inhalation of toxic fumes​.

Automotive and Transportation

The automotive industry benefits greatly from PEEK’s flame retardant properties. Components like under-the-hood parts, battery housings, and electrical insulation need to withstand high temperatures and potential fire hazards. PEEK’s ability to resist burning and emit low levels of smoke and toxic gases ensures that these parts remain safe and reliable even under extreme conditions​.

Environmental and Health Benefits

Reduced Toxic Exposure

Using materials with low smoke and toxic gas emissions like PEEK has significant environmental and health benefits. In the event of a fire, the lower emission of harmful substances means that both firefighters and occupants are less likely to suffer from smoke inhalation and exposure to toxic gases. This is particularly important in confined spaces such as aircraft cabins, submarines, and building interiors.

PEEK sheets offer exceptional flame retardancy and low smoke and toxic gas emissions, making them indispensable in applications where fire safety is critical. Their ability to meet stringent fire safety standards ensures they are used widely in various industries, enhancing safety and reliability.

Ease of Machining and Customization of PEEK Sheets

Superior Machinability of PEEK Sheets

PEEK sheets are highly regarded for their ease of machining, which allows for the creation of precise and intricate designs essential for advanced electronic components. PEEK can be easily machined using standard techniques, including milling, turning, drilling, and cutting, without compromising the material’s integrity. This machinability ensures that engineers and manufacturers can produce high-precision parts with tight tolerances, which are crucial in applications such as semiconductor manufacturing and medical devices.

High Precision and Intricate Designs

The excellent machinability of PEEK means that it can be shaped into complex geometries and fine details, making it ideal for custom electronic components. This is particularly important for components like connectors, insulators, and housing enclosures where precise dimensions and intricate features are required. The ability to maintain dimensional stability and surface finish during machining enhances the performance and reliability of the final product.

Availability of Different Grades for Specific Applications

Enhanced Customization Options

PEEK is available in various grades, each tailored for specific applications, enhancing customization options for different industries. For example, glass fiber-reinforced PEEK provides improved mechanical strength and stiffness, making it suitable for high-stress applications in the automotive and aerospace industries. On the other hand, carbon fiber-reinforced PEEK offers superior thermal conductivity and wear resistance, which are essential for industrial machinery and high-performance electronics.

Specialized Grades for Unique Requirements

Specialized grades of PEEK, such as those filled with PTFE for enhanced lubricity or ceramic fillers for extreme thermal stability, provide tailored solutions for unique requirements. These variants allow manufacturers to select the optimal PEEK grade based on the specific needs of their application, ensuring the best performance and longevity of the components. This versatility makes PEEK a highly adaptable material for a wide range of engineering challenges.

PEEK sheets in pharmaceutical equipment

Applications Benefiting from PEEK’s Machinability

Advanced Electronics and Semiconductors

In the electronics and semiconductor industries, the machinability of PEEK is critical for producing components like wafer carriers, connectors, and insulators. The ability to achieve high precision and maintain electrical insulation properties under various conditions ensures the reliability and efficiency of electronic devices and systems​.

Medical Devices and Implants

For medical applications, the biocompatibility and machinability of PEEK make it an excellent choice for implants and surgical instruments. The material can be machined to precise dimensions, ensuring a perfect fit and reliable performance in the human body. Additionally, the availability of medical-grade PEEK ensures that the material meets the stringent requirements of the medical industry, providing safe and effective solutions for healthcare.

PEEK sheets offer exceptional machinability and customization options, making them suitable for a wide range of high-precision applications. The availability of different grades tailored for specific needs further enhances their versatility, allowing for the production of reliable and high-performance components across various industries.

Applications in High-Frequency and High-Performance Electronics

PEEK in High-Frequency Devices

PEEK sheets are widely used in high-frequency electronic devices due to their excellent dielectric properties and thermal stability. These properties ensure that PEEK can handle high-frequency signals without significant loss or interference, making it ideal for components such as antennas, waveguides, and resonators. The ability of PEEK to maintain performance at high frequencies enhances the efficiency and reliability of these devices, crucial for applications in telecommunications and satellite communications.

Semiconductor Manufacturing Applications

Wafer Carriers and Handling Components

In the semiconductor industry, PEEK is extensively used for wafer carriers, handling components, and process fixtures. The high thermal stability and chemical resistance of PEEK allow it to withstand the rigorous conditions of semiconductor manufacturing processes, including exposure to harsh chemicals and high temperatures. These properties help in maintaining the integrity of delicate semiconductor wafers, reducing the risk of contamination and damage.

Benefits in High-Precision Manufacturing

The dimensional stability and machinability of PEEK are particularly beneficial in semiconductor manufacturing, where precision is paramount. Components made from PEEK can be machined to exact tolerances, ensuring precise positioning and handling of semiconductor wafers. This precision helps in improving the yield and quality of semiconductor devices, making PEEK an invaluable material in this high-tech industry.

machinability of PEEK

High-Performance Electronics

Connectors and Insulators

In high-performance electronics, PEEK is used for connectors, insulators, and other critical components. The high dielectric strength and thermal stability of PEEK ensure that these components can handle high voltages and temperatures without degradation. This reliability is essential for maintaining the performance and safety of electronic systems in demanding environments such as aerospace, automotive, and industrial automation.

Printed Circuit Boards (PCBs)

PEEK is also used in the manufacture of printed circuit boards (PCBs) for high-performance applications. The material's excellent electrical insulating properties and ability to withstand soldering temperatures make it ideal for high-density and high-speed PCBs. These properties ensure that PEEK-based PCBs provide reliable performance in critical applications, including defense electronics and high-speed computing.

Case Studies and Examples

Aerospace Electronics

In the aerospace industry, PEEK components are used in high-frequency communication systems and avionics. For example, PEEK waveguides and antenna components provide reliable performance under extreme conditions, including high altitudes and variable temperatures. This reliability ensures uninterrupted communication and navigation systems, which are vital for aircraft safety and efficiency.

Automotive Sensors and Controls

The automotive industry also benefits from PEEK's properties in high-performance electronic systems. PEEK is used in sensors, control units, and electrical insulation components that must operate reliably under the hood, where temperatures and mechanical stresses are high. The material's durability and stability ensure that these electronic components perform effectively throughout the vehicle's lifespan.

PEEK sheets are indispensable in high-frequency and high-performance electronics, offering unmatched properties that enhance the performance, reliability, and longevity of critical components across various advanced applications.

Common Questions and Answers about PEEK Sheets and BeePlastics Customization

General Questions about PEEK Sheets

  1. What are PEEK sheets used for in high-performance electronics?

    • Answer: PEEK sheets are used in high-frequency devices, semiconductor manufacturing, and other high-performance electronic components due to their exceptional thermal stability, dielectric properties, and mechanical strength. They are ideal for applications such as connectors, insulators, wafer carriers, and PCBs, ensuring reliability and efficiency under extreme conditions.
  2. What makes PEEK sheets suitable for high-temperature applications?

    • Answer: PEEK sheets can withstand continuous use at temperatures up to 260°C and short-term exposure to temperatures as high as 341°C without losing their mechanical properties. This high thermal stability makes them suitable for environments where maintaining material integrity at elevated temperatures is crucial.
  3. How does PEEK ensure safety in electronic devices?

  4. What are the benefits of PEEK’s chemical resistance in electronic manufacturing?

    • Answer: PEEK’s resistance to chemicals, solvents, and hydrolysis ensures that components made from PEEK can operate in harsh chemical environments without degrading. This is particularly beneficial in semiconductor manufacturing and other industries where chemical exposure is common, enhancing the longevity and reliability of the components.
  5. Why is wear resistance important for PEEK sheets in electronics?

    • Answer: Wear resistance is crucial for reducing the need for frequent replacements in high-wear applications. PEEK’s excellent wear resistance ensures that components like bearings, seals, and sliding elements maintain their integrity over long periods, even under constant friction and mechanical stress.
PEEK plastic sheets

Customization at BeePlastics

  1. Can BeePlastics undertake sample customization?

    • Answer: Yes, BeePlastics can undertake any customization, including sample customization and batch customization. We cater to the specific needs of our clients by providing tailored solutions to meet their exact requirements.
  2. What file formats does BeePlastics accept for customization projects?

    • Answer: BeePlastics accepts a variety of file formats, including PDF and CAD. This flexibility allows us to work with detailed designs and ensure precision in manufacturing custom components.
  3. Is there a minimum order quantity (MOQ) at BeePlastics?

    • Answer: There is no minimum MOQ at BeePlastics. We can handle both small and large orders, making it convenient for clients who need prototypes or limited production runs without committing to large quantities.
  4. How is the production cycle managed at BeePlastics?

    • Answer: The production cycle at BeePlastics is carried out according to the volume and complexity of the orders. We communicate the production progress in real-time to keep our clients informed and ensure timely delivery of their customized components.
  5. Does BeePlastics provide samples?

    • Answer: Yes, BeePlastics supports the provision of samples. While the samples are free of charge, customers are responsible for the shipping costs. This allows clients to evaluate the quality and suitability of our products before placing larger orders.

These questions and answers provide a comprehensive overview of the capabilities and benefits of PEEK sheets in high-performance electronics, as well as the customization services offered by BeePlastics. If you have further questions or need specific customization, feel free to contact us.

Conclusion

In the rapidly evolving world of high-frequency and high-performance electronics, PEEK sheets have emerged as a vital material due to their exceptional properties. Their thermal stability ensures reliable performance even at elevated temperatures, making them ideal for critical applications in aerospace and automotive industries. The superior mechanical strength and wear resistance of PEEK reduce the need for frequent replacements, thus lowering maintenance costs and enhancing the longevity of components. Additionally, PEEK's inherent flame retardancy and low emissions of smoke and toxic gases significantly contribute to safety standards in electronic devices.

Moreover, the ease of machining and the availability of various grades for specific applications offer unparalleled customization options. This flexibility allows for precise and intricate designs necessary for advanced electronic components, making PEEK sheets indispensable in sectors like semiconductor manufacturing and medical devices.

By integrating PEEK sheets into your electronic manufacturing processes, you can ensure high performance, safety, and durability, ultimately driving innovation and efficiency in your projects. Whether you require high-frequency device components, robust semiconductor manufacturing parts, or reliable high-performance electronics, PEEK provides the ideal solution. Explore the endless possibilities with BeePlastics' expertise in PEEK customization to elevate your products to new heights of excellence.

PEEK Gears

Enhance the reliability and efficiency of your electronic components with BeePlastics' PEEK sheets. Reach out to us now by completing the contact form at the bottom of this page. For detailed information on our PEEK offerings and how they can benefit your applications, click here.
