Choosing the right FR-4 plate for your PCB fabrication needs can be challenging, but it’s crucial for achieving optimal performance and reliability. In this comprehensive guide, I’ll explore everything you need to know about FR-4 material and how to select the best type for your projects. We’ll start by understanding the fundamental composition and properties of FR-4 glass epoxy, highlighting its mechanical and thermal properties that impact its application. Next, I’ll compare standard FR-4 with high-Tg and other specialized variants to help you make an informed decision based on your specific requirements.
🎉🎉🎉Limited Time Offer Use code: QR4GNY08SHVR at checkout and enjoy a special discount on your entire order! 👉 FR4 fiberglass plastic
We’ll also delve into the signal integrity and impedance considerations that are vital for high-frequency applications, ensuring you understand the impact of the dielectric constant on signal loss and stability. Moreover, I’ll address the moisture absorption characteristics and environmental resistance of FR-4 epoxy, providing tips on choosing the right material for different conditions. Finally, I’ll share practical best practices for selecting and using FR-4 in PCB fabrication, including advice on avoiding common issues like delamination and warping.
Whether you’re a seasoned professional or new to PCB fabrication, this guide will equip you with the expert knowledge to choose the right FR-4 plate for your needs, ensuring the best performance for your electronic devices.
Understanding FR-4 Material Composition and Properties
What is FR-4 Material?
FR-4 material is a composite material extensively used in PCB fabrication. It consists of woven fiberglass cloth and an epoxy resin binder, which gives it unique properties that make it ideal for various electronic applications. The term "FR" stands for flame retardant, a crucial feature that ensures the material complies with safety standards for electronic devices.
Composition of FR-4 Material

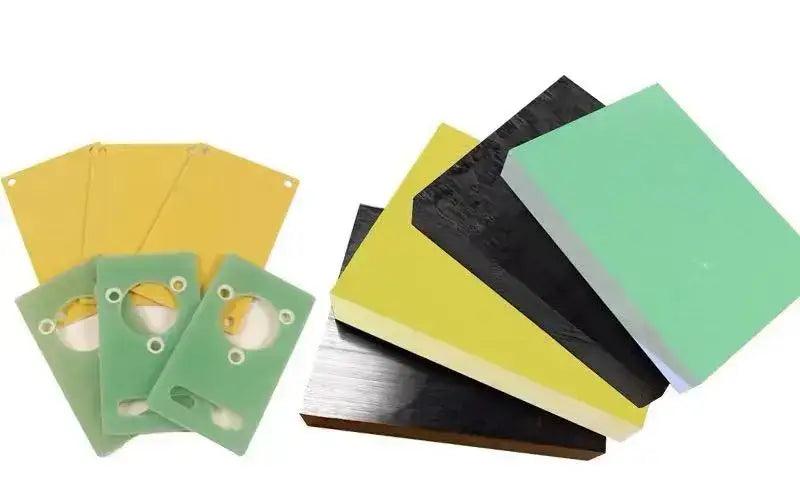

FR-4 glass epoxy is composed primarily of woven fiberglass, which provides excellent structural strength and rigidity. This fiberglass is embedded in an epoxy resin binder, which offers additional mechanical stability and electrical insulation properties. The combination of these materials results in a substrate that is both durable and reliable for PCB applications.
Key Properties of FR-4 Material
Flame Retardance
One of the most significant properties of FR-4 material is its flame retardance. This property ensures that the material can withstand high temperatures without igniting, which is essential for maintaining the safety and integrity of electronic components. The flame retardant characteristic of FR-4 meets the UL94V-0 standard, indicating its effectiveness in preventing fire hazards.
Dielectric Constant
The dielectric constant of FR-4 material is another critical property. It measures the material's ability to store electrical energy in an electric field. For FR-4, this value typically ranges from 4.5 to 4.8, which is suitable for most electronic applications. A stable dielectric constant ensures consistent performance in high-frequency circuits and helps maintain signal integrity.
Mechanical Strength
The mechanical strength of FR-4 glass epoxy is derived from its fiberglass content. This gives the material a high strength-to-weight ratio, making it robust enough to withstand mechanical stresses during PCB manufacturing and operation. It also exhibits good dimensional stability, which means it maintains its shape and size under varying environmental conditions.
Why Choose FR-4 for PCB Fabrication?
FR-4 material is favored in PCB fabrication due to its balanced properties. Its flame retardance ensures safety, while its dielectric properties support efficient electrical performance. The mechanical strength and stability of FR-4 make it a reliable choice for creating durable PCBs that can withstand the demands of various electronic applications.
Applications of FR-4 Material
FR-4 laminate is used in single-sided, double-sided, and multi-layered PCBs across various industries, including consumer electronics, telecommunications, automotive, aerospace, and industrial equipment. Its versatility and performance make it the go-to material for manufacturers seeking quality and reliability in their electronic components.
Considerations When Selecting FR-4 Material
When choosing FR-4 material for your PCBs, consider the specific requirements of your application. Factors such as operating temperature, mechanical stress, and electrical performance needs should guide your selection. High-Tg FR-4 variants are available for applications requiring higher thermal performance, while halogen-free options provide environmentally friendly solutions without compromising on quality.
Incorporating FR-4 glass epoxy into your PCB designs ensures you leverage a material known for its robust performance, safety, and versatility, making it a cornerstone in the world of electronics manufacturing.
Evaluating Mechanical and Thermal Properties of FR-4
Mechanical Properties of FR-4
Tensile Strength
Tensile strength is a crucial mechanical property of FR-4 material. This property measures the resistance of the material to breaking under tension. FR-4 glass epoxy typically exhibits high tensile strength due to the fiberglass content, which ensures the material can withstand significant pulling forces without breaking. This strength makes FR-4 a reliable choice for applications that require durable and resilient PCB substrates.
Flexural Strength
Another vital mechanical property is flexural strength, which indicates the material's ability to resist deformation under load. FR-4 plates have excellent flexural strength, allowing them to bend without cracking or breaking. This property is particularly important in PCBs that may be subject to mechanical stresses during installation or operation. The flexibility of FR-4 ensures that the boards remain intact and functional, even in demanding environments.
Thermal Properties of FR-4
Glass Transition Temperature (Tg)
The glass transition temperature (Tg) is a critical thermal property of FR-4 epoxy. Tg is the temperature at which the material transitions from a rigid state to a more pliable, rubber-like state. For standard FR-4, the Tg typically ranges from 130°C to 140°C, but high-Tg variants can exceed 170°C. A higher Tg is essential for applications that involve high-temperature processes, such as lead-free soldering, which requires temperatures up to 250°C. Choosing the right Tg rating ensures the PCB can endure these conditions without losing structural integrity.
Thermal Expansion Coefficient
The thermal expansion coefficient of FR-4 material measures how much the material expands when heated. This property is crucial for maintaining the dimensional stability of PCBs under thermal stress. FR-4 glass epoxy exhibits a relatively low thermal expansion coefficient, which means it does not expand significantly with temperature changes. This stability is vital for maintaining the alignment and reliability of electronic components mounted on the PCB, particularly in high-precision applications.
Impact of Mechanical and Thermal Properties on Application Selection
Durability and Reliability
The combined mechanical and thermal properties of FR-4 material significantly influence its selection for various applications. The high tensile and flexural strength ensure that FR-4 PCBs can withstand physical stresses during manufacturing, installation, and use. This durability is essential for applications in harsh environments, such as automotive, aerospace, and industrial electronics, where the PCBs are exposed to mechanical vibrations and shocks.
High-Temperature Applications
For high-temperature applications, selecting an FR-4 variant with an appropriate glass transition temperature (Tg) is crucial. High-Tg FR-4 materials are necessary for processes involving lead-free soldering or for use in environments where the PCB is exposed to elevated temperatures. The low thermal expansion coefficient further ensures that the PCBs maintain their shape and functionality, preventing issues such as warping or misalignment of components.
Conclusion
Understanding and evaluating the mechanical and thermal properties of FR-4 are essential steps in selecting the right material for your PCB fabrication needs. By considering factors such as tensile strength, flexural strength, glass transition temperature, and thermal expansion coefficient, you can ensure that your PCBs will perform reliably in their intended applications. This knowledge helps in making informed decisions that enhance the durability, performance, and longevity of electronic devices.
Comparing Standard FR-4 with High-Tg and Other Variants
Standard FR-4 Material
Standard FR-4 is the most commonly used material in PCB fabrication due to its balance of cost, performance, and ease of manufacturing. Composed of woven fiberglass cloth and an epoxy resin binder, it provides good mechanical strength and electrical insulation. Standard FR-4 typically has a glass transition temperature (Tg) of around 130°C, making it suitable for most general-purpose electronic applications. Its flame retardance, as indicated by the "FR" in its name, ensures safety by meeting the UL94V-0 standard.
High-Tg FR-4
High-Tg FR-4 materials are designed to perform in higher temperature environments. They have a Tg exceeding 170°C, which provides better thermal stability and reliability under extreme heat conditions. This higher Tg is crucial for applications involving lead-free soldering processes that can reach temperatures up to 250°C. High-Tg FR-4 also exhibits lower thermal expansion, reducing the risk of PCB warping and maintaining the integrity of electronic components under thermal stress.
Halogen-Free FR-4
Halogen-free FR-4 is an environmentally friendly variant that eliminates halogens from its composition to reduce toxic emissions during manufacturing and disposal. This type of FR-4 material is increasingly preferred in applications where environmental impact and regulatory compliance are critical. Halogen-free FR-4 still retains the essential properties of standard FR-4, such as mechanical strength and electrical insulation, but with added benefits of being more sustainable and safer for use in sensitive environments.
Specialized FR-4 Types
Other specialized FR-4 variants include those with enhanced properties for specific applications. For example, FR-4 epoxy glass cloth laminate offers superior dimensional stability and moisture resistance, making it ideal for marine and outdoor applications. High CTI (Comparative Tracking Index) FR-4 materials provide improved resistance to electrical arcing, which is crucial in high-voltage applications.
Scenarios for Each FR-4 Type
General-Purpose Applications
Standard FR-4 is suitable for most general-purpose electronic applications where moderate thermal performance and cost-effectiveness are key considerations. It is commonly used in consumer electronics, industrial equipment, and telecommunications devices.
High-Temperature Environments
High-Tg FR-4 is essential for applications that involve high operating temperatures, such as automotive electronics, aerospace systems, and advanced industrial machinery. Its enhanced thermal stability ensures reliable performance under thermal stress.
Environmentally Sensitive Applications
Halogen-free FR-4 is the material of choice for environmentally sensitive applications, including consumer electronics that must comply with stringent environmental regulations like RoHS (Restriction of Hazardous Substances). This variant is also preferred in green manufacturing processes where reducing toxic emissions is a priority.
Moisture and Outdoor Applications
For applications exposed to moisture or outdoor environments, FR-4 epoxy glass cloth laminate provides the necessary resistance to environmental factors. It is used in marine electronics, outdoor telecommunications equipment, and any other applications requiring robust moisture resistance.
Conclusion
When selecting the appropriate FR-4 laminate for your PCB fabrication needs, it is crucial to consider the specific requirements of your application. By understanding the differences between standard FR-4, high-Tg FR-4, and specialized variants like halogen-free FR-4, you can ensure that your PCBs will perform reliably and meet all necessary safety and environmental standards. This knowledge helps in making informed decisions that enhance the durability, performance, and longevity of electronic devices.
Signal Integrity and Impedance Considerations with FR-4
Impact of Dielectric Constant on Signal Integrity
The dielectric constant (Dk) of FR-4 material plays a crucial role in determining the signal integrity of printed circuit boards (PCBs). FR-4 glass epoxy typically has a dielectric constant ranging from 4.2 to 4.8, depending on the specific formulation and frequency. This variability in Dk can affect the propagation speed of electrical signals, leading to potential issues in high-frequency applications. A stable dielectric constant is essential for maintaining consistent signal transmission and preventing signal degradation.
Dielectric Constant Variability and Signal Loss
Signal loss in FR-4 laminates is directly influenced by the dielectric constant. As the frequency increases, the dielectric constant can vary, which in turn affects the impedance of the PCB. Impedance stability is critical in high-frequency circuits to ensure that signals are transmitted efficiently without excessive loss. Variability in Dk can cause mismatched impedance, leading to reflections, crosstalk, and other forms of signal integrity degradation. This is particularly problematic in high-speed digital circuits where precise control of impedance is necessary for optimal performance.
Dissipation Factor and Signal Attenuation
The dissipation factor (Df) of FR-4 material is another important parameter that impacts signal integrity. The dissipation factor represents the material's inherent electrical losses, which translate into signal attenuation. Standard FR-4 materials typically have a higher Df compared to high-frequency laminates, leading to greater signal loss at high frequencies. For instance, FR-4 materials might exhibit a Df around 0.020, while specialized high-frequency laminates have a much lower Df, around 0.004, resulting in significantly less signal attenuation.
Impedance Control in High-Frequency Applications
In high-frequency applications, maintaining impedance control is essential for signal integrity. The dielectric constant of FR-4 glass epoxy can vary with frequency, temperature, and humidity, making it challenging to achieve stable impedance. High-speed digital circuits, RF circuits, and microwave applications require materials with minimal variation in Dk to ensure consistent impedance. This stability helps prevent signal reflections and ensures reliable signal transmission across the PCB.
Design Strategies for Improved Signal Integrity
To mitigate the effects of dielectric constant variability and achieve better signal integrity, PCB designers can implement several strategies:
Use of Low-Dk Variants
Opting for low-Dk FR-4 variants can help reduce signal loss and improve impedance control. These materials offer more stable dielectric properties across a range of frequencies, making them suitable for high-frequency applications.
Controlled Impedance Design
Implementing controlled impedance design techniques, such as precise trace width and spacing, can help manage the effects of Dk variability. Designers can use simulation tools to model the impedance of PCB traces and adjust the layout accordingly to achieve the desired impedance.
Shielding and Grounding
Effective shielding and grounding techniques can minimize crosstalk and electromagnetic interference (EMI), further enhancing signal integrity. Using ground planes and careful routing of high-frequency signals can reduce the impact of Dk variability on signal performance.
Applications Requiring High Signal Integrity
Applications that demand high signal integrity include:
- High-speed digital circuits: Used in data centers, telecommunications, and computing, where consistent signal transmission is crucial.
- RF and microwave circuits: Used in wireless communication devices, satellite systems, and radar, requiring precise impedance control.
- Automotive and aerospace electronics: Where reliability and performance are critical under varying environmental conditions.
By understanding the impact of FR-4 material properties on signal integrity and impedance, PCB designers and manufacturers can make informed choices to ensure optimal performance in their high-frequency applications.
Moisture Absorption and Environmental Resistance of FR-4
Moisture Absorption Characteristics of FR-4
FR-4 material is known for its low moisture absorption properties, which is a crucial factor for maintaining the integrity and performance of PCBs in various environmental conditions. The epoxy resin in FR-4 acts as a barrier to moisture, while the woven fiberglass provides additional stability. Typically, FR-4 laminates absorb moisture at a rate of 0.10% to 0.20%, depending on the specific formulation and environmental conditions. This low absorption rate helps prevent swelling, delamination, and other moisture-induced issues that can compromise the functionality of the PCB.
Suitability for Different Environmental Conditions
FR-4 epoxy laminates are well-suited for applications exposed to varying humidity levels and other harsh environmental conditions. The combination of low moisture absorption and high mechanical strength makes FR-4 an ideal choice for electronics used in outdoor and industrial settings. For instance, in marine and automotive applications, where exposure to moisture and fluctuating temperatures is common, FR-4 provides the necessary resistance to maintain performance and reliability.
Tips for Choosing FR-4 for Harsh Conditions
When selecting FR-4 material for environments with high humidity or extreme conditions, consider the following tips:
Opt for High-Performance Variants
Choose high-performance FR-4 variants that offer enhanced moisture resistance and stability. These variants often have improved resin formulations that further reduce moisture absorption and enhance durability.
Use Protective Coatings
Applying protective coatings, such as conformal coatings, can provide an additional barrier against moisture and environmental contaminants. These coatings help seal the PCB surface, preventing moisture ingress and corrosion.
Consider Halogen-Free FR-4
For applications requiring environmentally friendly solutions, halogen-free FR-4 is an excellent choice. It not only reduces the environmental impact but also maintains the critical properties needed for reliable performance under harsh conditions.
Applications of Moisture-Resistant FR-4
Marine Electronics
In marine environments, electronics are constantly exposed to saltwater, humidity, and varying temperatures. FR-4 epoxy glass cloth laminate is commonly used in these applications due to its superior moisture resistance and robustness.
Outdoor Telecommunications
Telecommunications equipment installed outdoors must withstand weather extremes, including high humidity, rain, and temperature fluctuations. FR-4 laminates provide the necessary environmental resistance to ensure long-term reliability and performance.
Industrial Control Systems
Industrial environments often involve exposure to moisture, chemicals, and high temperatures. FR-4 material is suitable for PCBs used in these settings, offering the durability and resistance required to operate reliably in such demanding conditions.
Conclusion
By understanding the moisture absorption characteristics and environmental resistance of FR-4 material, manufacturers can make informed decisions to enhance the performance and longevity of their electronic devices. Selecting the appropriate FR-4 epoxy variants and implementing protective measures will ensure that PCBs can withstand the challenges posed by harsh environmental conditions, maintaining their functionality and reliability across various applications.
Best Practices for Selecting and Using FR-4 in PCB Fabrication
Selecting the Right FR-4 Thickness
Choosing the appropriate FR-4 plate thickness is crucial for ensuring the durability and functionality of your PCBs. The thickness of the FR-4 material can significantly impact the mechanical strength, flexibility, and heat dissipation properties of the PCB.
Factors to Consider
- Application Requirements: Different applications may require different FR-4 thicknesses. For high-power applications, a thicker FR-4 plate might be necessary to handle the heat dissipation. Conversely, for compact electronic devices, a thinner plate might be preferable to save space and reduce weight.
- Mechanical Strength: Thicker FR-4 materials generally provide better mechanical strength, which is important for PCBs that will be subjected to physical stress or handling during installation and use.
- Thermal Management: Consider the thermal performance of the FR-4 material. Thicker plates can dissipate heat more effectively, which is beneficial for high-power or high-temperature applications.
Handling and Processing FR-4 Materials
Proper handling and processing of FR-4 materials are essential to avoid defects and ensure high-quality PCB production.
Handling Tips
- Storage Conditions: Store FR-4 glass epoxy materials in a controlled environment to prevent moisture absorption and contamination. Use desiccant packs and maintain a low humidity level in storage areas.
- Cleanliness: Keep the work area clean and free from dust and debris to prevent contamination of the FR-4 plates. Wear gloves to avoid transferring oils and dirt from hands to the material.
Processing Tips
- Cutting and Drilling: Use sharp and well-maintained tools for cutting and drilling FR-4 materials to avoid chipping and delamination. Ensure that the cutting tools are suitable for the thickness and hardness of the FR-4 plate.
- Lamination Process: During the lamination process, maintain consistent pressure and temperature to ensure proper adhesion of the copper foil to the FR-4 substrate. Monitor the lamination parameters closely to prevent warping and delamination.
Avoiding Common Issues
Delamination
Delamination occurs when the layers of the FR-4 laminate separate, which can compromise the electrical and mechanical integrity of the PCB.
- Proper Lamination: Ensure that the lamination process is done correctly, with appropriate pressure and temperature settings. Avoid excessive thermal cycling that can stress the material and lead to delamination.
- Quality Control: Implement thorough quality control checks to detect and address delamination early. Use X-ray inspection and other non-destructive testing methods to assess the integrity of the laminated boards.
Warping
Warping can cause misalignment and mechanical stress in the PCB, leading to failures in the electronic components.
- Balanced Layer Stackup: Design the PCB with a balanced layer stackup to distribute mechanical stresses evenly. Use symmetrical layer configurations to minimize warping during thermal cycles.
- Controlled Cooling: Allow the laminated boards to cool gradually and evenly to prevent thermal shock, which can cause warping. Use controlled cooling methods to ensure uniform temperature distribution across the board.
Ensuring Consistency in Production
Consistency in production is key to manufacturing high-quality PCBs with FR-4 material properties that meet industry standards.
- Standardized Procedures: Implement standardized procedures for handling, processing, and inspecting FR-4 materials. Train staff to follow these procedures diligently.
- Regular Maintenance: Maintain and calibrate equipment regularly to ensure they are functioning correctly. Properly maintained tools and machines produce more consistent and reliable results.
- Continuous Monitoring: Continuously monitor the production process for any deviations or anomalies. Use statistical process control (SPC) methods to track and analyze production data, identifying areas for improvement.
By following these best practices, fabricators can optimize the selection and use of FR-4 materials in PCB fabrication, ensuring high-quality, reliable, and durable electronic components.
Frequently Asked Questions (FAQs) about FR-4 Material and BeePlastics Customization
General Questions about FR-4 Material
Q1: What is FR-4 material? A1: FR-4 material is a composite material made from woven fiberglass cloth and an epoxy resin binder, known for its flame retardant properties. It is widely used as the substrate for printed circuit boards (PCBs) due to its excellent mechanical strength, electrical insulation, and thermal stability.
Q2: What are the key properties of FR-4 material? A2: The key properties of FR-4 material include high tensile strength, good flexural strength, a stable dielectric constant, low moisture absorption, and excellent flame retardance. These properties make it suitable for a wide range of electronic applications.
Q3: How does the glass transition temperature (Tg) of FR-4 affect its performance? A3: The glass transition temperature (Tg) of FR-4 indicates the temperature at which the material changes from a rigid state to a more flexible one. High-Tg FR-4 materials can withstand higher operating temperatures, making them ideal for applications involving high thermal stress, such as lead-free soldering processes.
Q4: What are the differences between standard FR-4 and high-Tg FR-4? A4: Standard FR-4 typically has a Tg around 130°C, suitable for general applications. High-Tg FR-4 has a Tg exceeding 170°C, offering better thermal stability and reliability under high-temperature conditions. High-Tg variants are preferred for high-performance and high-temperature applications.
Q5: How does moisture absorption affect FR-4 materials? A5: Moisture absorption in FR-4 materials can lead to swelling, delamination, and reduced electrical performance. However, FR-4 has a low moisture absorption rate (0.10% to 0.20%), making it suitable for applications exposed to varying humidity levels and harsh environmental conditions.
BeePlastics Customization Questions
Q6: Can BeePlastics handle customizations, including sample and batch customizations? A6: Yes, BeePlastics can undertake any customization, including both sample customization and batch customization. We cater to specific needs and specifications, ensuring that each product meets the client's requirements.
Q7: What file formats does BeePlastics accept for customization requests? A7: BeePlastics accepts a variety of file formats for customization requests, including PDF and CAD. This flexibility allows clients to provide their designs in the format that best suits their workflow.
Q8: Is there a minimum order quantity (MOQ) for customizations at BeePlastics? A8: No, BeePlastics does not require a minimum order quantity (MOQ) for customizations. We are happy to accommodate orders of all sizes, from single prototypes to large-scale production runs.
Q9: How does BeePlastics manage the production cycle and communicate progress? A9: The production cycle at BeePlastics is managed based on the order volume and the complexity of the customization process. We ensure transparent communication with clients, providing real-time updates on the production progress to keep them informed throughout the process.
Q10: Does BeePlastics provide samples, and what are the terms? A10: Yes, BeePlastics supports the provision of samples. Customers are responsible for the shipping costs, but the samples themselves are provided free of charge. This allows clients to evaluate the quality and suitability of our products before placing larger orders.
These FAQs provide a comprehensive overview of both the technical aspects of FR-4 material and the customization services offered by BeePlastics, ensuring that clients have all the information they need to make informed decisions.
In conclusion, selecting the right FR-4 plate for PCB fabrication is a critical step in ensuring the durability, reliability, and performance of your electronic devices. By understanding the mechanical and thermal properties of FR-4, such as its tensile and flexural strength, glass transition temperature (Tg), and thermal expansion coefficient, fabricators can make informed decisions that meet the specific needs of their applications. Additionally, comparing standard FR-4 with high-Tg and other specialized variants helps in choosing the best material for high-temperature and environmentally sensitive conditions. Adhering to best practices in handling and processing FR-4 materials, and considering factors like thickness and protective coatings, further enhances the quality and consistency of PCBs. With this knowledge, you can leverage the advantages of FR-4 glass epoxy to produce high-quality, reliable, and efficient electronic components, ensuring the success of your projects and the satisfaction of your customers.
