T-Type Nylon Stepped Washers with Insulating Bushing – M2 to M16
Expected Delivery on - .
Free Shipping & Return
Money back guarantee
Fast & reliable support
Secure payment
Free standard shipping provided, no shipping fee required. Contact customer service for expedited shipping. Return within 30 days, duties & taxes non-refundable.

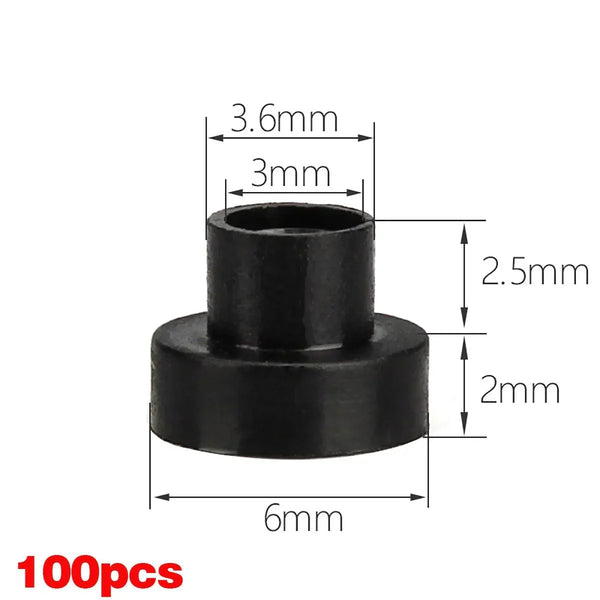

- 100pcs M3x3.6x6 - $36.55
- 100pcs M3x3.5x6 - $37.46
- 100pcs M5x6x10 - $37.74
- 50pcs M2x3x6 - $37.94
- 10pcs M12x14x24 - $38.92

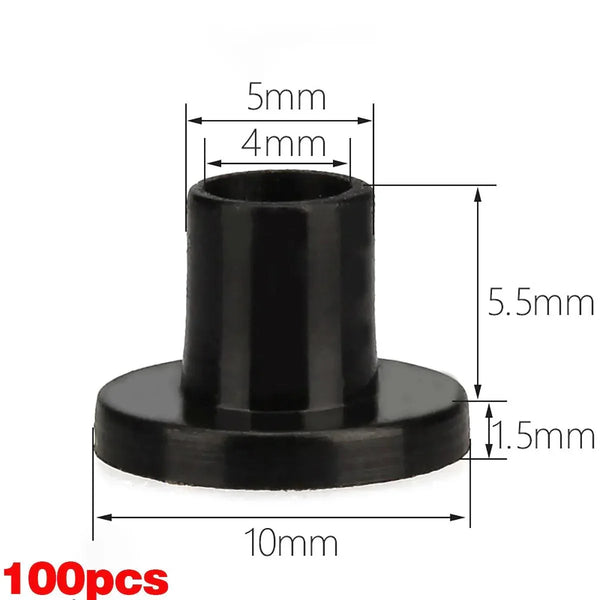

- 100pcs M4x5x10 - $37.24
- 20pcs M6x8x12 - $37.14
- 20pcs M8x10x16 - $37.23
- 20pcs M10x12x20 - $38.55
- 10pcs M10x14x20 - $37.37
- 10pcs M14x16x28 - $28.72
- 10pcs M16x18x30 - $29.10
- 100pcs M3x3.5x6 1 - $28.34
- 100pcs M3x3.6x6 1 - $28.74
- 100pcs M4x5x10 1 - $28.94
- 100pcs M5x6x10 1 - $29.05
- 20pcs M6x8x12 1 - $29.35
- 20pcs M8x10x16 1 - $29.75
- 20pcs M10x12x20 1 - $30.05
- 10pcs M10x14x20 1 - $30.02
T-Type Nylon Stepped Washers with Insulating Bushing – M2 to M16
PRODUCT DETAILS

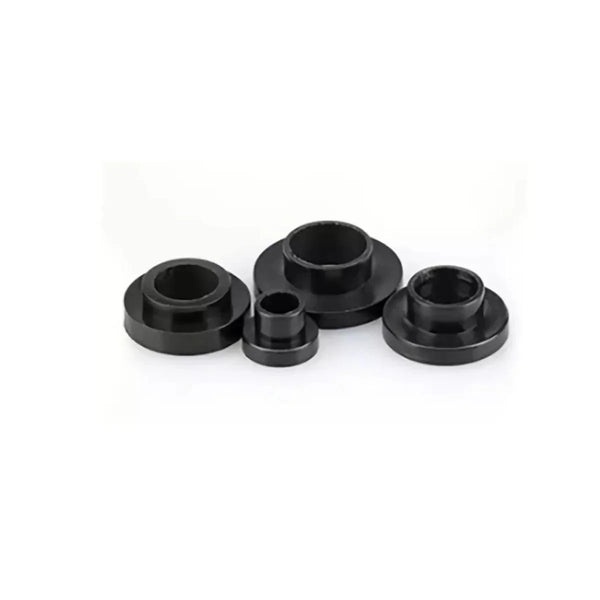

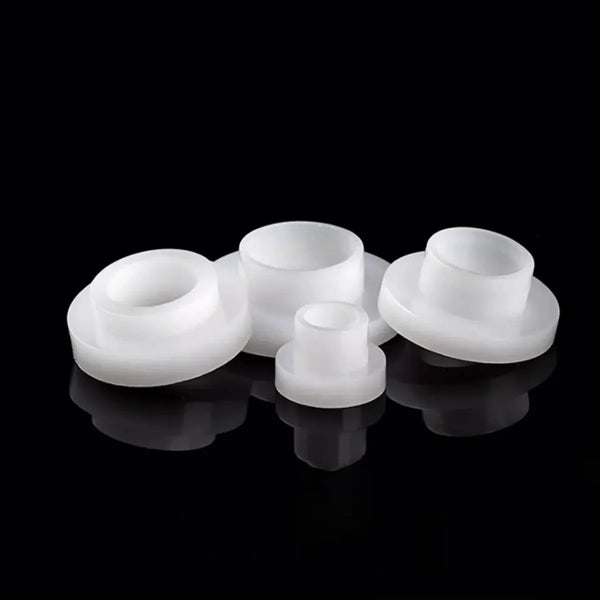

🛠️ T-Type Nylon Stepped Washers – Secure Fit, Electrical Insulation, and Mechanical Stability
Our T-type nylon stepped washers with concave-convex threads and integrated insulating bushings are engineered to meet the needs of professionals across electronics, automotive, machinery, and construction industries. With enhanced vibration resistance, electrical insulation, and size precision, these washers offer an ideal solution for both high-volume production and custom applications. Made from high-strength nylon 6/6, they offer excellent resistance to heat, chemicals, and wear. Available in black and white, in sizes ranging from M2 to M16, with inch conversions provided for your convenience. Whether you need standard packs or customized dimensions, we’ve got you covered.
🔍 Features and Benefits of Nylon Step Insulating Washers
-
T-Type Stepped Design: Enables precise alignment and secure fit in layered assemblies, ensuring consistent tension and easy installation across multiple hardware points.
-
Concave-Convex Thread Interface: Offers increased grip, prevents loosening under vibration, and provides structural locking in dynamic systems.
-
Electrical Insulating Nylon: Crafted from industrial-grade nylon 6/6 for reliable dielectric properties, making it ideal for circuit separation and low-to-medium voltage applications.
-
Durable and Lightweight: Heat-resistant, corrosion-resistant, and built for long-term use in harsh environments.
-

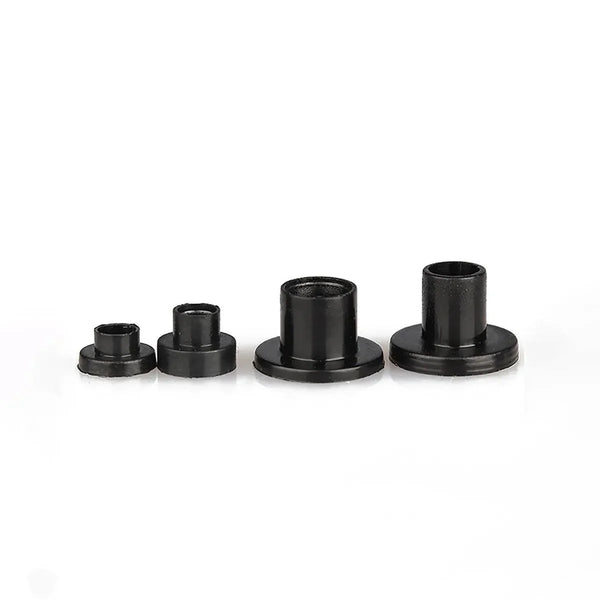

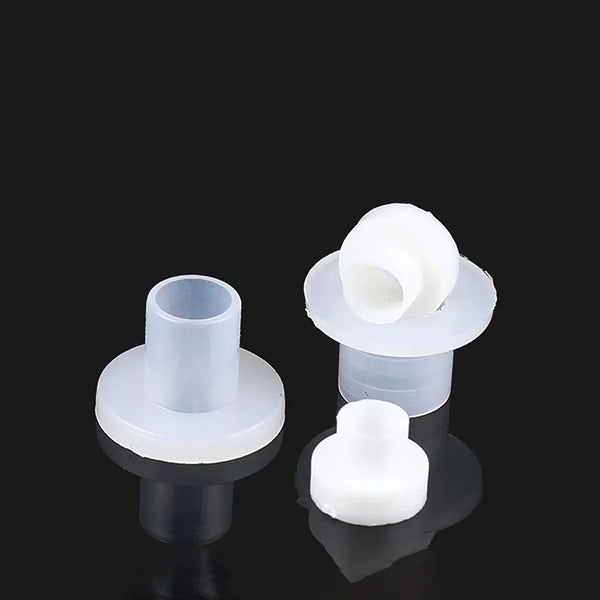

Color-Coded Options: Available in white and black for easy differentiation of use cases or aesthetic matching.
📐 Specifications and Sizing (Metric & Inch Units)

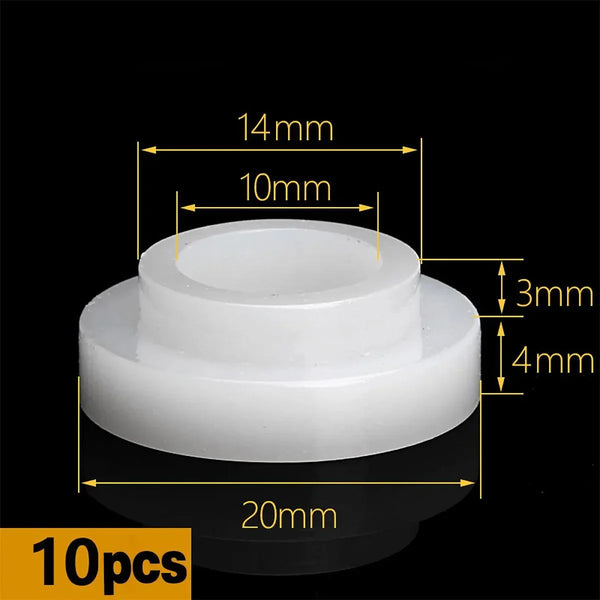

All washers follow the format d × D × K (inner diameter × outer diameter × height)
| Model | Metric Size (mm) | Inch Equivalent | Color | Pack Size |
|---|---|---|---|---|

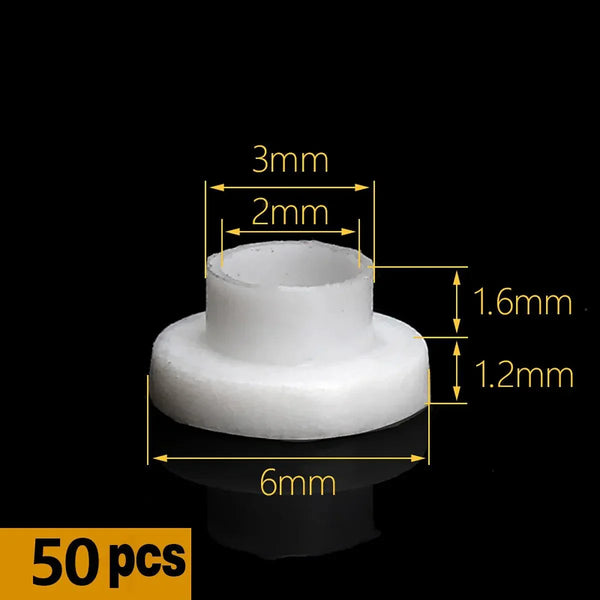

| M2×3×6 | 2×3×6 | 0.08×0.12×0.24 in | White | 50 pcs |

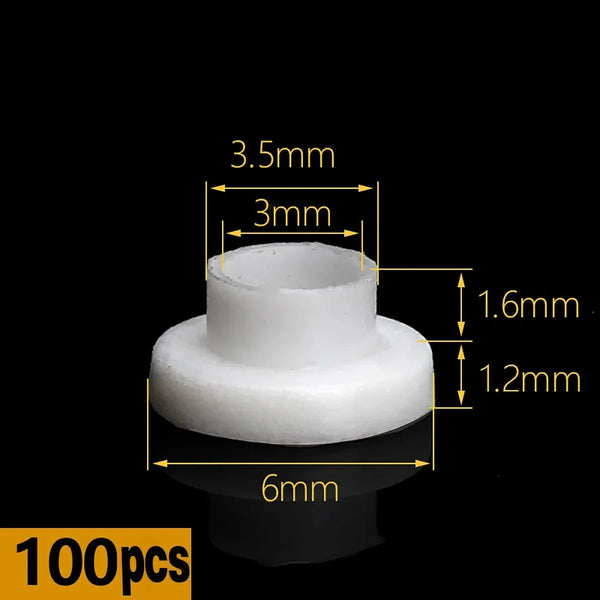

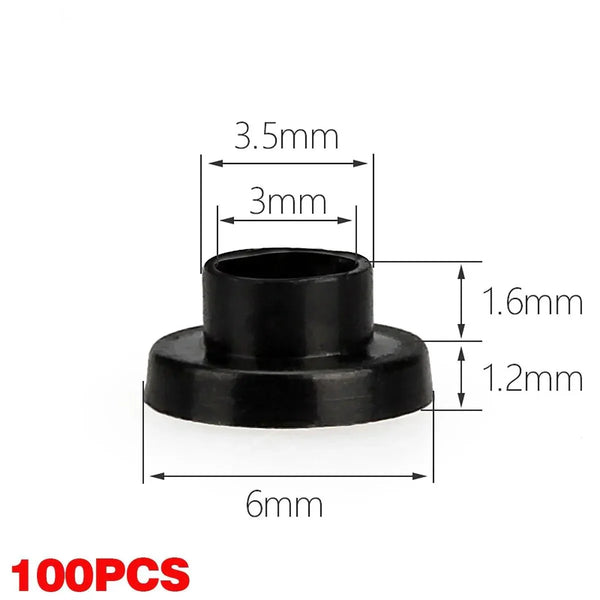

| M3×3.5×6 | 3×3.5×6 | 0.12×0.14×0.24 in | White / Black | 100 pcs |

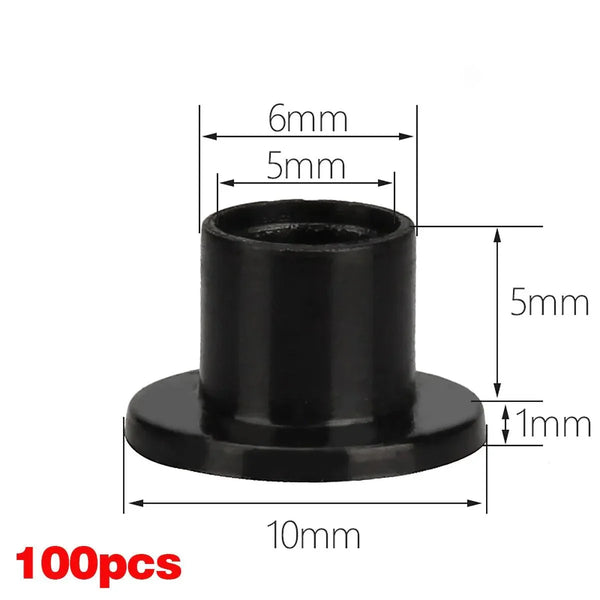

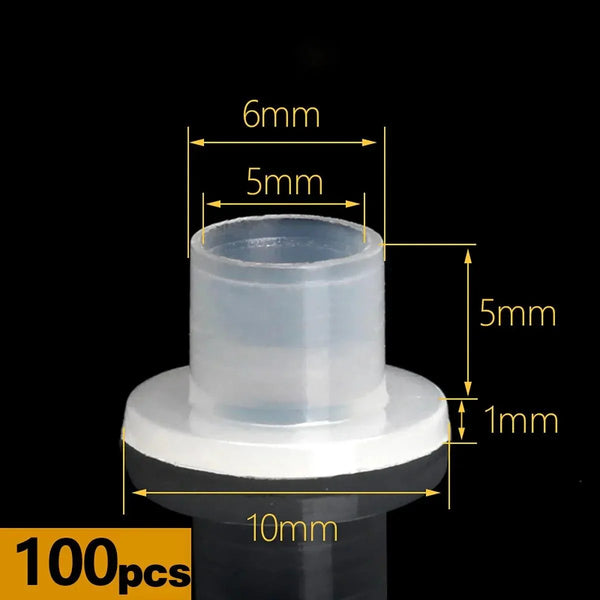

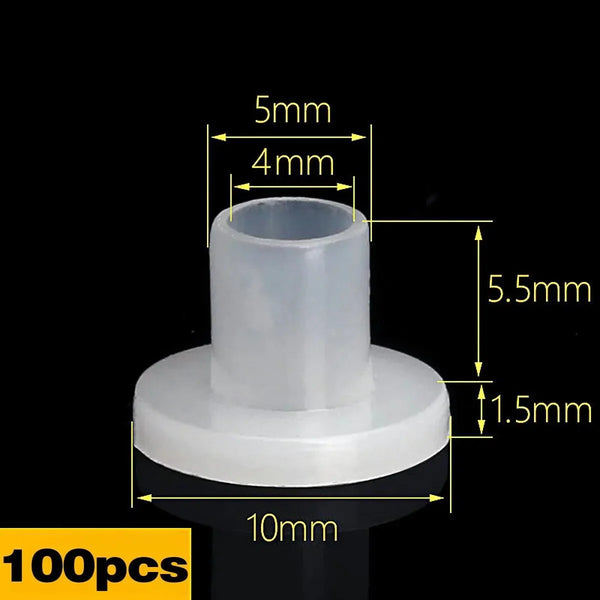

| M4×5×10 | 4×5×10 | 0.16×0.2×0.4 in | White / Black | 100 pcs |
| M5×6×10 | 5×6×10 | 0.2×0.24×0.4 in | White / Black | 100 pcs |

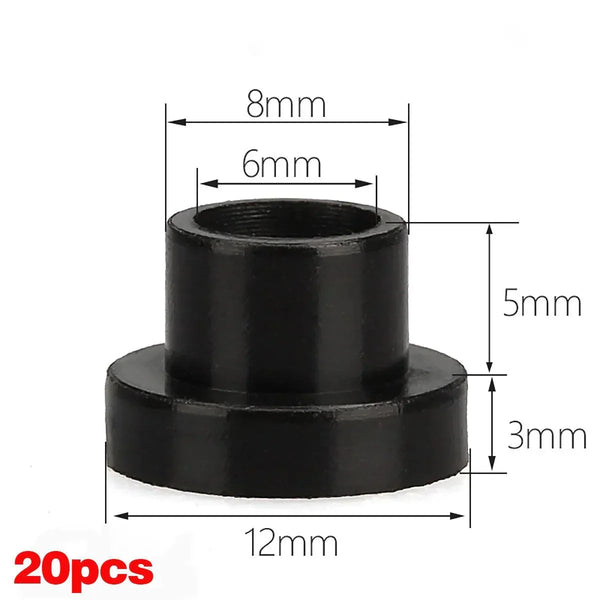

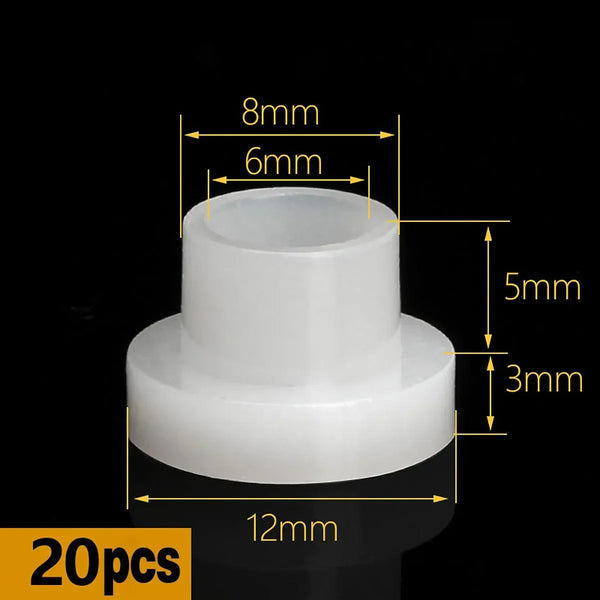

| M6×8×12 | 6×8×12 | 0.24×0.31×0.47 in | White / Black | 20 pcs |

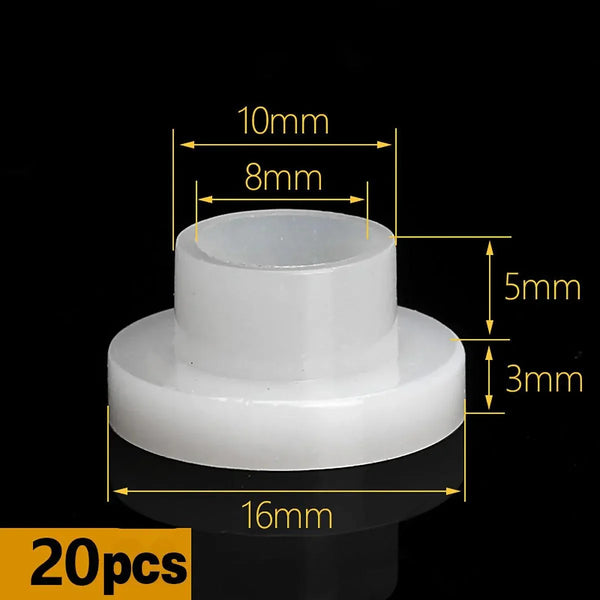

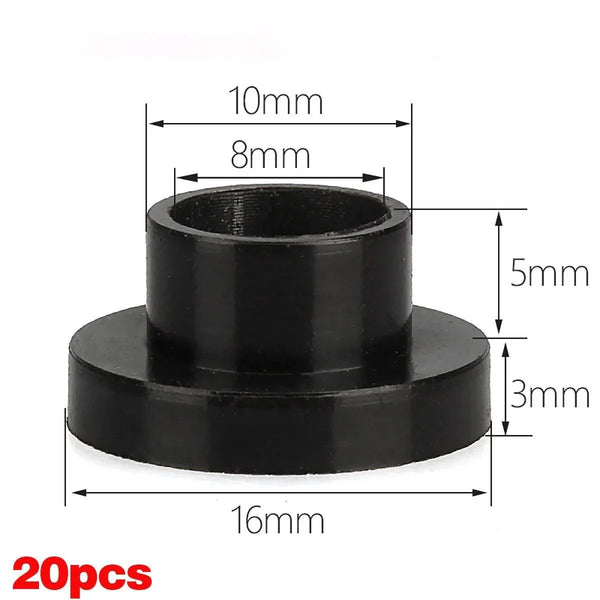

| M8×10×16 | 8×10×16 | 0.31×0.39×0.63 in | White / Black | 20 pcs |

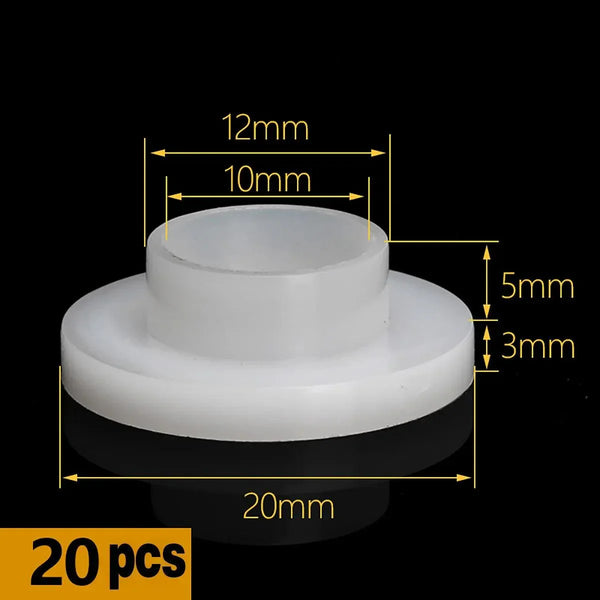

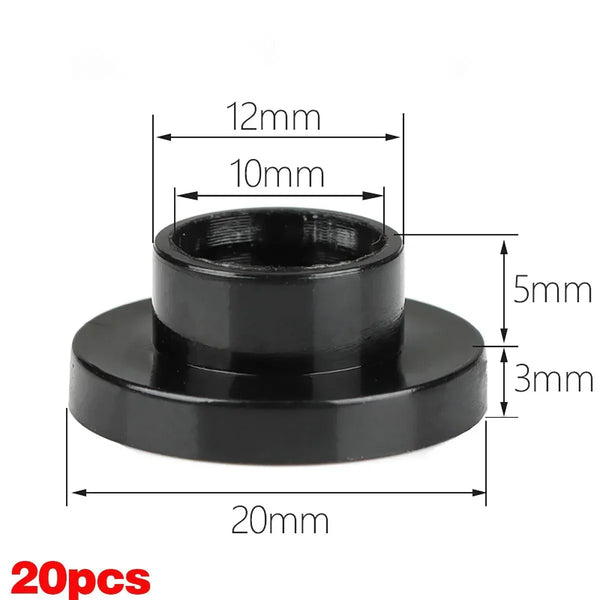

| M10×12×20 | 10×12×20 | 0.39×0.47×0.79 in | White / Black | 20 pcs |

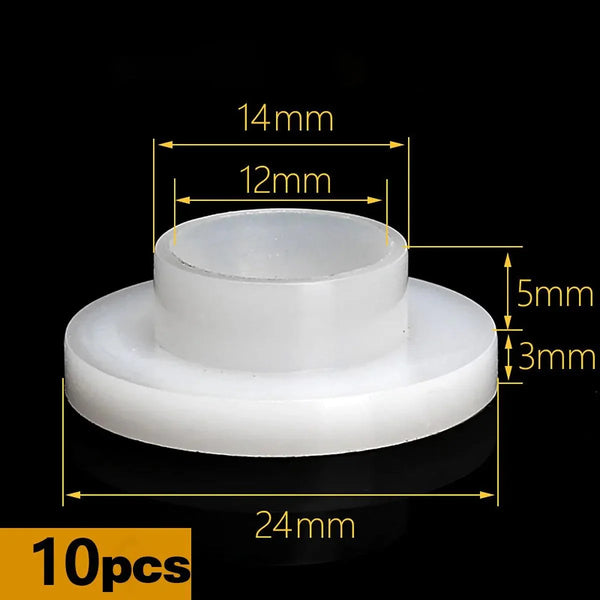

| M12×14×24 | 12×14×24 | 0.47×0.55×0.94 in | White / Black | 10 pcs |

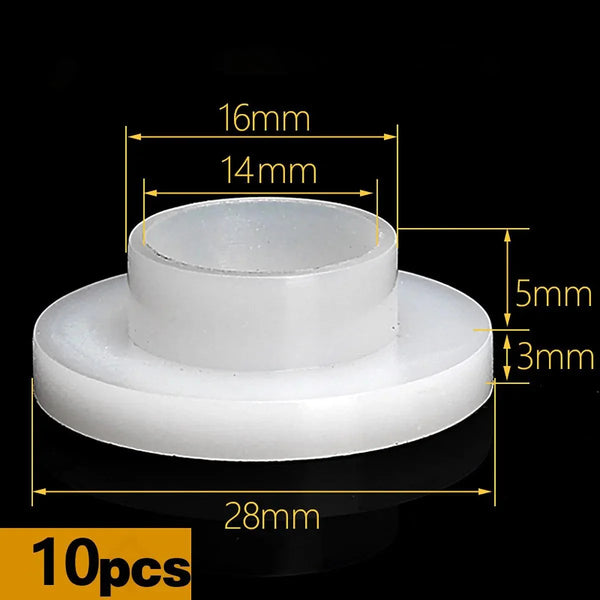

| M14×16×28 | 14×16×28 | 0.55×0.63×1.10 in | White | 10 pcs |
| M16×18×30 | 16×18×30 | 0.63×0.71×1.18 in | White | 10 pcs |
Note: Custom sizes, shapes, or tolerance requirements are available on request.
🧩 Applications Across Industries
These concave thread insulating bushings are widely used in:
-
Electronics Assembly: Provide circuit board insulation and vibration control
-
Automotive Engineering: Secure mounts, interior fixtures, and dashboard units
-
Power Tools and Machinery: Vibration-dampening support in tool housing
-
Construction Hardware: Spacer and insulator functions for outdoor and industrial fixtures
-
Furniture and Fixtures: Reduce wear and ensure stable installations
💼 Why Buy from BeePlastic?
-
🔧 Wide Selection of Engineering Plastics – We stock over 200 material types and thousands of sizes to match your exact application needs
-
🎯 Precision Custom Processing – From CNC machining to UV printing and laser cutting, we support any special requirement
-
💬 Expert Support Team – With 15+ years of industry experience, our engineers are ready to help you save time, budget, and effort
-
🌍 Global Shipping – Fast dispatch, worldwide delivery, and flexible logistics options
-
💰 Competitive Pricing – We work hard to reduce your procurement costs without sacrificing quality
❓ Frequently Asked Questions (FAQ)
Q: Are these nylon step washers suitable for high-voltage applications?
A: Yes, nylon 6/6 offers excellent insulating performance and is widely used in electrical systems with up to 600V tolerance, depending on design.
Q: Can I customize the washer dimensions or shape?
A: Absolutely. We accept custom drawings or dimension requests and provide CNC/laser production for exact matches.
Q: What's the standard tolerance of your step washers?
A: Standard tolerance is ±0.1mm. If you require tighter control, please indicate your needs when ordering.
Q: Can I get a sample pack before placing a large order?
A: Yes, samples for standard models are available upon request. Contact our sales team to request yours.
🛒 Ready to Order or Customize?
✔️ Bulk Order Today – Fast Dispatch & Multi-Pack Discounts
✔️ Need Custom Sizes or Drawings? [Request a Quote Now]
Let us help you complete your project with quality, reliability, and tailored solutions.
