Orange Bakelite (Phenolic) Plate 30–100 mm — Cut-to-Size Insulating Board

Orange Bakelite Phenolic Plate 30–100 mm Thick — Electrical Insulating Board for Jigs, Fixtures & Spacers

Durable Phenolic Laminate for Industrial Electrical Insulation

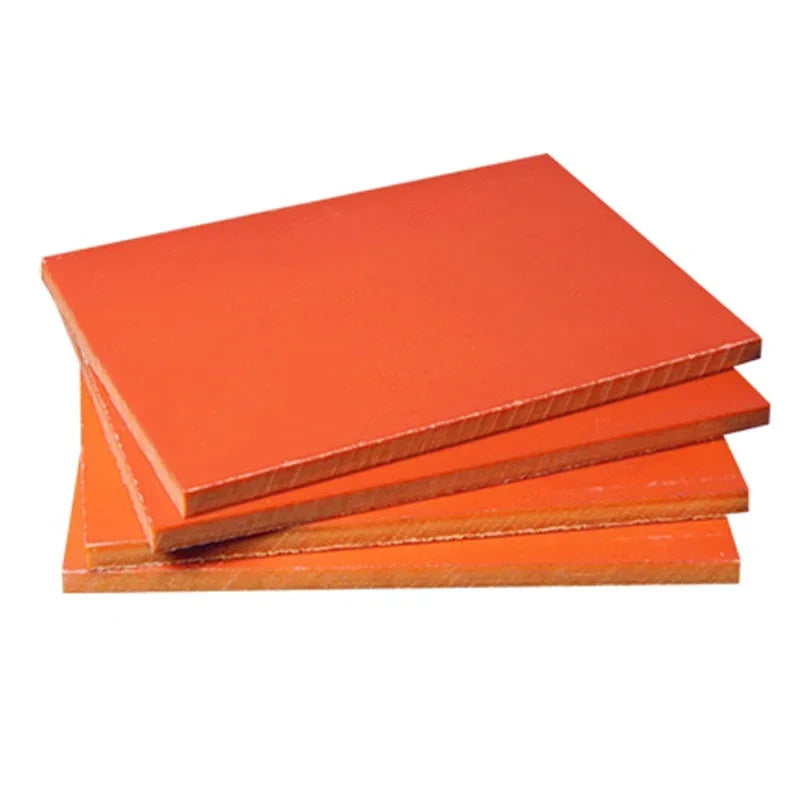

The orange Bakelite phenolic plate in 30–100 mm thickness (≈1.18–3.94") is a rigid electrical insulating board widely used for jigs, fixtures, insulating spacers, and structural blocks. With excellent mechanical strength and dielectric reliability, this phenolic laminate is the preferred choice for tooling bases, insulating risers, and shop-floor applications where metal or other plastics are not suitable.

Key Benefits of Thick Bakelite Insulation Plates

• High mechanical strength: Stable under heavy loads, perfect for fixtures and support blocks.
• Reliable insulation: Phenolic resin laminate provides consistent electrical insulation for industrial use.
• Heat resistance: Suitable for many workshop and electrical environments, with continuous service up to ~120–140 °C.
• Machinability: Can be cut, drilled, chamfered, and CNC-machined for precise parts.
• Cost-effective: Easier to machine than metals, lighter for shipping, and budget-friendly for large projects.

Available Thickness & Sizes (Metric & Inch)

Thickness Options

30 mm (1.18"), 35 mm (1.38"), 40 mm (1.57"), 45 mm (1.77"), 50 mm (1.97"), 60 mm (2.36"), 70 mm (2.76"), 80 mm (3.15"), 90 mm (3.54"), 100 mm (3.94")

Standard Cut Sizes

• 100×150 mm (3.94×5.91")
• 200×150 mm (7.87×5.91")
• 200×200 mm (7.87×7.87")
• 200×250 mm (7.87×9.84")
• 200×300 mm (7.87×11.81")
• 300×300 mm (11.81×11.81")

Need a different size? Choose Custom Size or Upload Drawing — BeePlastic provides cut-to-size service to reduce waste and lower your cost.

Typical Properties of Phenolic Boards

• Density: ~1.3–1.45 g/cm³
• Excellent dielectric insulation
• Continuous service temperature: ~120–140 °C
• Good flexural and compressive strength

*Values are typical guide values. For projects with strict technical requirements, please consult us for application-specific recommendations.

Processing & Tolerances

• As-sawn thickness tolerance: typically ±0.5–1.0 mm depending on thickness and size
• Flatness depends on plate size and thickness

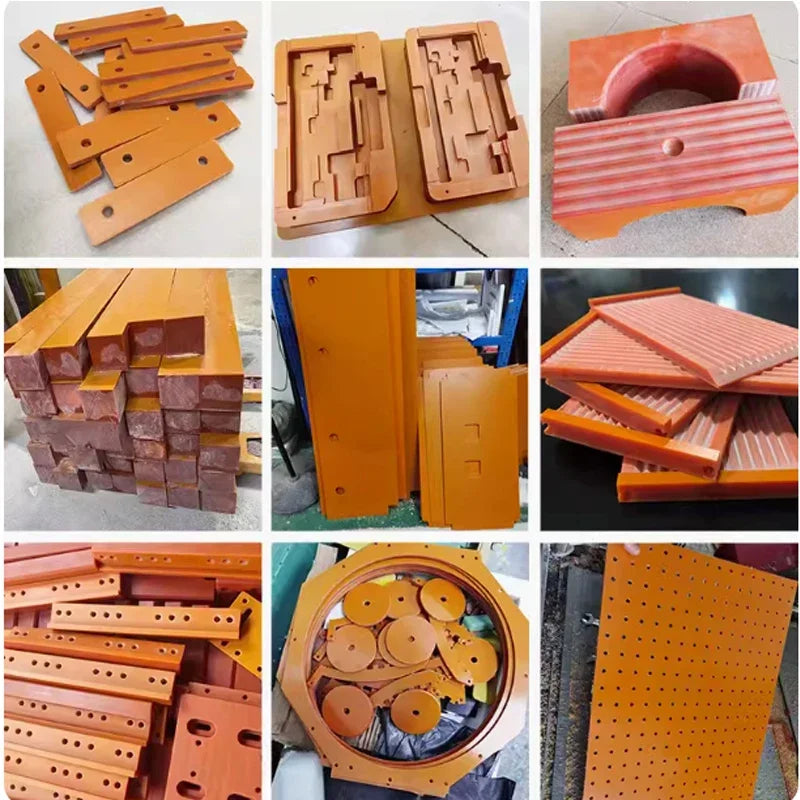

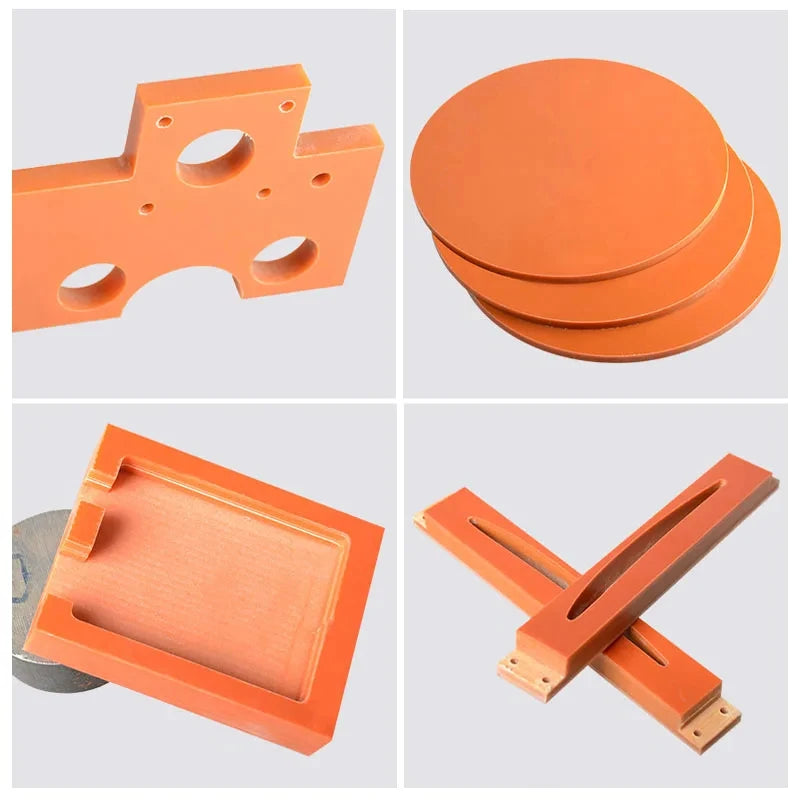

• Machining services available: cutting, drilling, countersinking, chamfering, CNC milling

Common Applications

• Insulating spacers and blocks in electrical systems
• Fixture plates and wear pads for mechanical shops
• Jigs and tooling bases for woodworking and assembly lines
• Support plates and risers requiring strength and insulation

BeePlastic Advantage — Save Time and Cost

• Cut-to-size service: Order exact sizes to minimize scrap and reduce spend.
• CNC machining support: Upload drawings for a free DFM check within 1 business day.
• Multiple material choices: From Bakelite and FR-4/G10 to PTFE, UHMW-PE, and POM — we help you find the best-value alternative.
• Cost-efficient shipping: Consolidated packing and optimized logistics lower freight costs.

How to Order

1. Select the Thickness and Size above.
2. Need a special size? Click Custom Size or Upload Drawing.
3. For bulk orders, request a Wholesale Quote with tiered pricing and optimized delivery.

Ready to start? ➜ Upload your drawing now to get a quick and budget-friendly quote from BeePlastic.

FAQs

Can you cut to my exact size or machine special shapes?

Yes. We cut-to-size and offer CNC machining such as drilling, countersinking, and chamfering.

What tolerances can I expect?

Typical as-sawn thickness tolerance is ±0.5–1.0 mm. Machined features can be held tighter depending on your requirements.

What applications are these boards suitable for?

They are widely used for insulating spacers, tooling jigs, fixture plates, risers, and structural insulating blocks.

Do you have a minimum order quantity?

No MOQ for cut-to-size orders. We also provide bulk and wholesale pricing for large projects.

BeePlastic — your reliable source for orange Bakelite phenolic plates (30–100 mm), cut-to-size insulating boards, and CNC-machined plastic components. Upload your drawing today and get a fast, cost-optimized solution.
