Canvas Phenolic Sheet (Fabric-Base) — Machinable Insulation Board, Cut-to-Size 2–50 mm

Canvas Phenolic Sheet (Fabric-Base Bakelite) | Machinable Phenolic Laminate Plate | Electrical Insulation Jig & Fixture Board | Cut-to-Size 2–50 mm (0.08–1.97 in)

Canvas Phenolic (Fabric-Base) Overview — Machinable “Bakelite” for Jigs, Fixtures, Spacer Blocks & Electrical Panels

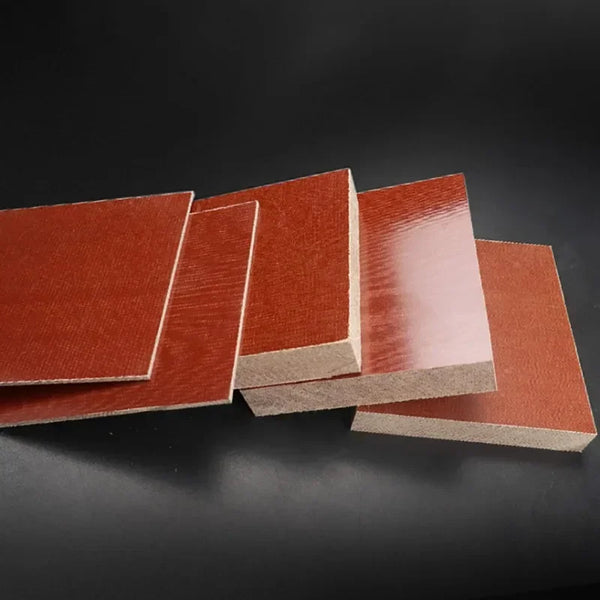

Canvas phenolic sheet (also called fabric-base phenolic laminate, cotton-cloth phenolic plate, or machining-grade “Bakelite”) is a phenolic resin laminate reinforced with woven cotton fabric. Compared with paper-base phenolic, the fabric-base grade delivers higher impact strength, better wear resistance, clean CNC machinability and dependable electrical insulation. It’s widely used for jig & fixture plates, insulating spacers/risers, tooling bases, wear pads/strips, and other machined phenolic parts.

Mechanical Strength, Electrical Insulation & CNC Machinability — Phenolic Laminate Benefits

• High mechanical strength & impact resistance → resists edge chipping under load → longer-lasting fixtures and spacer blocks.
• Reliable dielectric properties → stable insulation in shop-floor assemblies → safer switchgear panels and transformer spacers.
• Heat & wear resistance → consistent performance in production environments → less downtime and lower maintenance cost.
• Easy to machine (sawing, drilling, countersinking, chamfering, CNC routing/milling) → precise, repeatable fits → reduced secondary finishing and rework.
• Cut-to-size service → plates arrive ready to assemble → lower material waste & freight charges.

Thickness 2–50 mm & Standard Panel Sizes (mm & inch) — Cut-to-Size Canvas Phenolic Plates

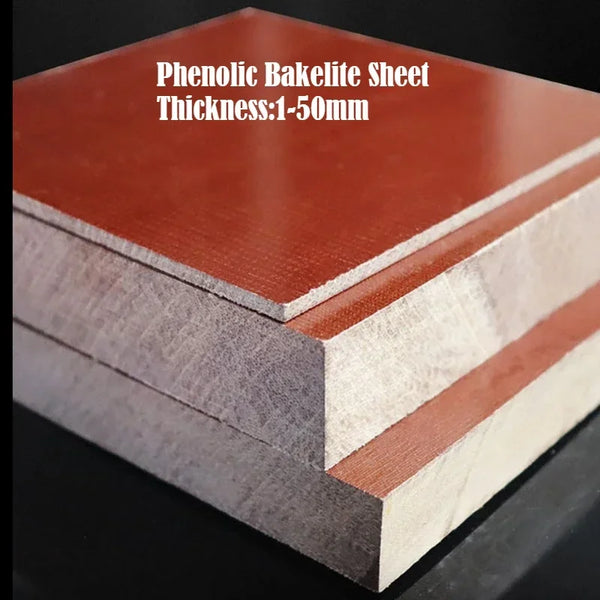

• Thickness range: 2–50 mm (≈ 0.08–1.97 in)
• Common thickness (mm → in): 2 (0.08"), 3 (0.12"), 4 (0.16"), 5 (0.20"), 6 (0.24"), 8 (0.31"), 10 (0.39"), 12 (0.47"), 15 (0.59"), 20 (0.79"), 25 (0.98"), 30 (1.18"), 40 (1.57"), 50 (1.97")

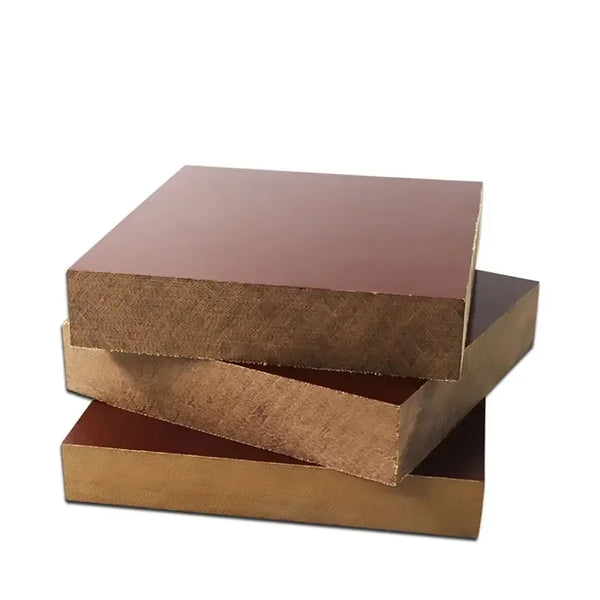

• Panel sizes (mm / inch):

• Packs: 1 pc or 2 pcs (bulk/wholesale available)

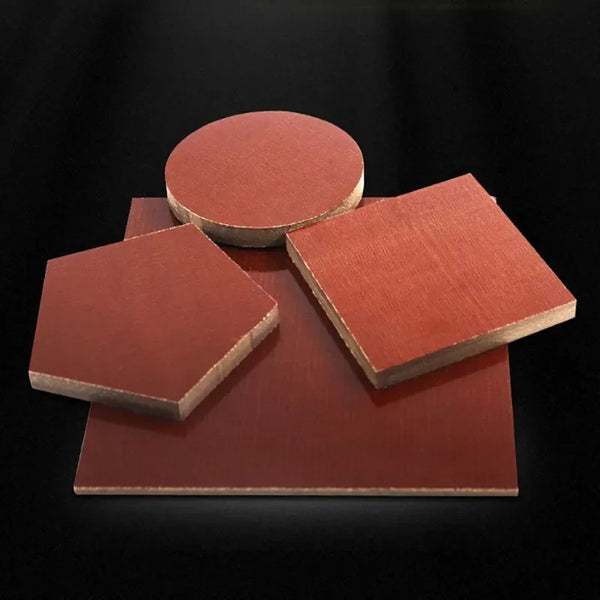

• Custom cuts & non-listed sizes: supported — upload a drawing or leave exact dimensions at checkout.

Upload Drawings → Free DFM & Quote in 1 Business Day

CNC Machining, Surface Grinding & Tolerances — Ready-to-Install Canvas Phenolic Parts

• Standard sawn tolerance: width/length ±1.5 mm (±0.06 in) for general spacer plates & bases.
• Thickness control: as-cut per sheet spec; optional surface grinding for tighter thickness & flatness when required.
• Operations: sawing, drilling, countersinking, chamfering, tapping, CNC routing/milling; light deburr recommended.
• Cost-saving design tips: keep hole-to-edge ≥ 1.5× thickness; nest multiple parts per panel to reduce scrap and freight.

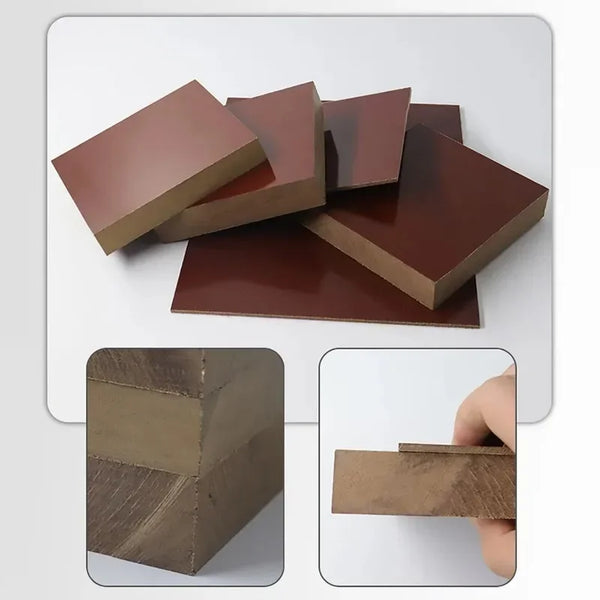

Applications — Jig & Fixture Plates, Insulating Spacers/Risers, Tooling Bases, Wear Pads & Shop-Floor Insulation Boards

Use this fabric-base phenolic laminate for jigs and fixtures, insulating spacers/risers, tooling bases, wear strips/pads, and CNC-machined phenolic components in electrical and mechanical assemblies.

BeePlastic Advantage — Cut-to-Size + CNC Machining + Free DFM + Free Standard Shipping (Cost-Saving)

• One-stop materials hub: phenolic (fabric & paper), FR-4/G10, PTFE, POM, ABS, PEEK and more — match substitutes fast, reduce multi-vendor overhead.
• Custom manufacturing expertise: CNC, laser cutting, UV printing, precision surface grinding, chamfering — parts arrive install-ready.
• Customer-first pricing: free DFM check, optimized nesting to reduce scrap, protective packaging to cut freight — we proactively lower your total landed cost.
• Service & speed: responsive engineering support, flexible MOQ, free standard shipping with expedited options.

Shipping, Lead Time & Protective Packaging for Phenolic Sheets

• Lead time: typically ships in 1–3 business days; rush available.
• Shipping: free standard shipping on qualifying orders; expedited services on request.

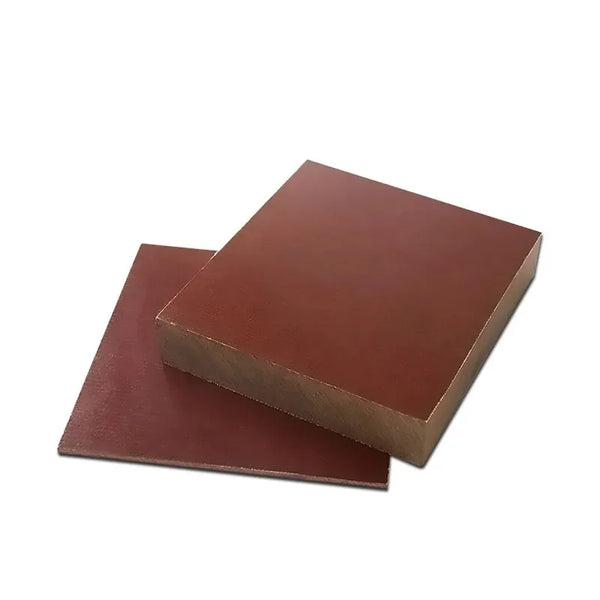

• Packing: edge-protected cartons or wooden crate when needed to prevent corner damage on thick plates.

Canvas vs Paper Phenolic — Fabric-Base Phenolic Laminate vs Paper-Base Insulation Board

If you need the lowest-cost pure insulation, see our Paper Phenolic Sheet. For fixtures, spacers and wear applications, choose fabric-base phenolic.

FAQ — Canvas Phenolic Sheet (Fabric-Base Bakelite) Sizing, Machining & Tolerances

Is this the machining-grade “Bakelite” used for fixtures?

Yes — this page is the fabric-base (canvas) phenolic, the machining-grade variant commonly chosen for jigs, fixture plates and spacer blocks.

Can you hold tight thickness and flatness?

Yes. Order standard sawn plates for general use, or request surface-ground finishing for tighter thickness/flatness when your design requires it.

Can I order in inches?

Absolutely. All options show both mm & inch. You can also submit a drawing with exact imperial dimensions.

Do you machine holes, countersinks, threads or pockets?

Yes — our machining service covers drilling, countersinking, chamfering, tapping and CNC routing/milling. Upload your drawing for a free DFM review.

How can I reduce total cost on phenolic plates?

Combine multiple parts on one panel, select the lowest workable thickness, and let us optimize nesting & packaging. We aim to minimize scrap and freight without compromising performance.

Ready to cut or machine your canvas phenolic?

Upload Drawings → Free DFM & Quote in 1 Business Day Talk to an Engineer
