Epoxy FR4 Insulation Plates for 280Ah LiFePO4 Battery Packs – 203×172×0.5mm

Availability: In Stock
Regular price $39.98 $5.99 | Save $0.00 (0% off)
/
See our shipping policy for delivery details.
Ready to ship!

Notify me when available

You have already submited form for 203x172x0.5mm / 3PCS

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
Standard shipping is included in the price of listed standard-size products. Contact us for expedited shipping or custom-order delivery.

Standard shipping included

Quality issue support

Fast & reliable support

Secure payment

Shipping and Returns

Standard shipping is included in the price of listed standard-size products. Contact us for expedited shipping or delivery arrangements for custom or oversized orders. Returns are accepted for quality problems under our refund policy, without limiting applicable statutory rights.

119124118122119124116123

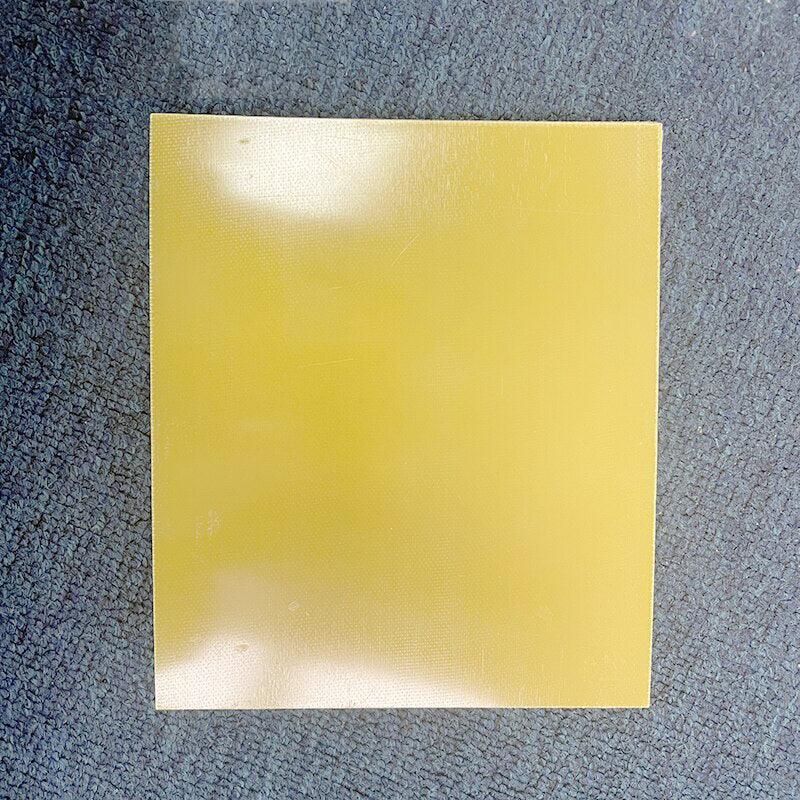

Front view of 3240 FR4 epoxy insulation sheet for lithium battery pack

Epoxy FR4 Insulation Plates for 280Ah LiFePO4 Battery Packs – 203×172×0.5mm

203x172x0.5mm / 3PCS - $39.98
  • 203x172x0.5mm / 3PCS - $39.98
  • 203x172mm and Glue / 3PCS - $40.03
  • 203x172x0.5mm / 7pcs - $43.63
  • 203x172mm and Glue / 7pcs - $45.31
  • 203x172x0.5mm / 15pcs - $48.02
  • 203x172mm and Glue / 15pcs - $50.87
  • 203x172x0.5mm / 31pcs - $53.07
  • 203x172mm and Glue / 31pcs - $65.75

PRODUCT DETAILS

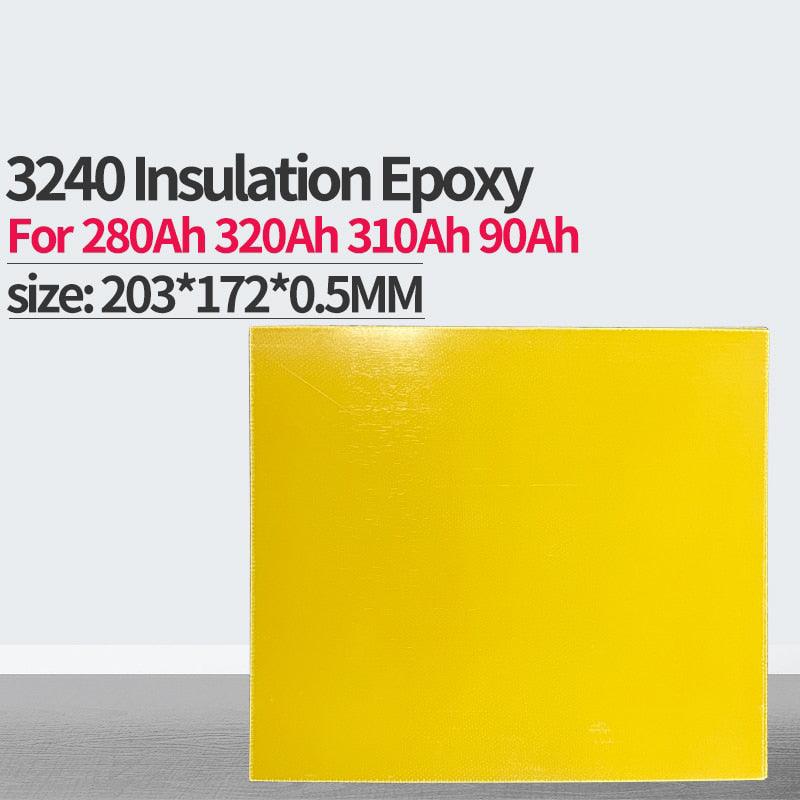

3240 FR4 Epoxy Insulation Sheet for LiFePO4 Battery Packs – 203×172×0.5mm (8”×6.77”×0.02”)

High-Performance Battery Pack Separator for 3.2V Lithium Cells

Protect your LiFePO4 battery builds with our 3240 FR4 epoxy insulation sheets. Designed specifically for 280Ah, 320Ah, 310Ah, and 90Ah lithium battery cells, these precision-cut insulation plates deliver superior dielectric strength, heat resistance, and long-term durability. Whether you’re working on solar storage systems, RV power setups, or marine batteries, this insulation solution ensures maximum safety and reliability.


🔧 Product Features & Advantages

  • Premium 3240 FR4 Epoxy Resin
    Excellent insulation, flame resistance, and mechanical strength—far superior to fish paper or Kapton tape.

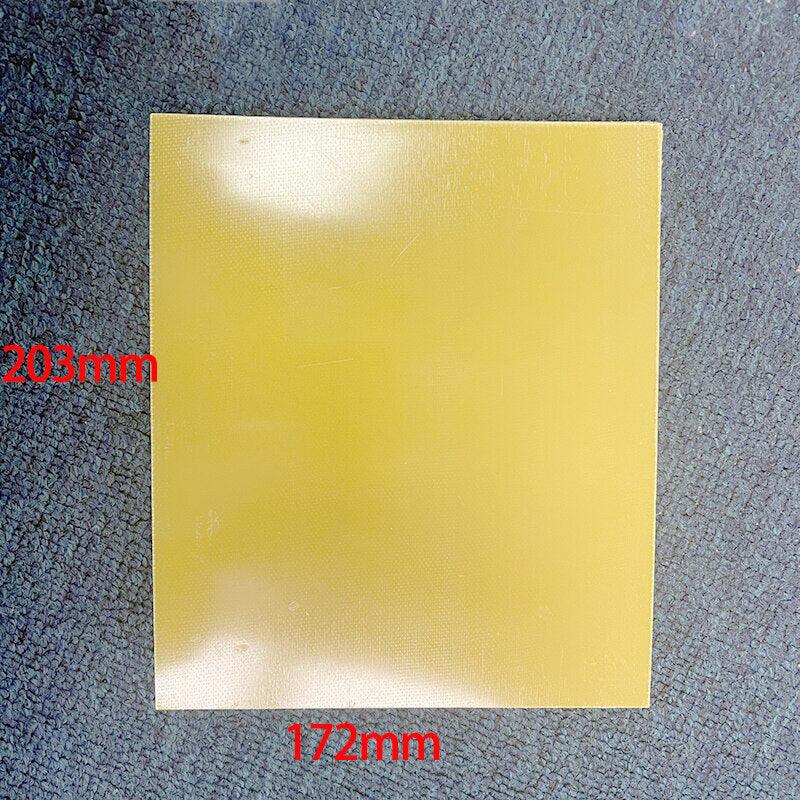

  • Precise Dimensions: 203×172×0.5mm (≈ 8”×6.77”×0.02”)
    Standard fit for most DIY lithium battery modules—no trimming required.

  • Thin Yet Robust 0.5mm Sheet
    Adds insulation protection without compromising space inside your battery module.

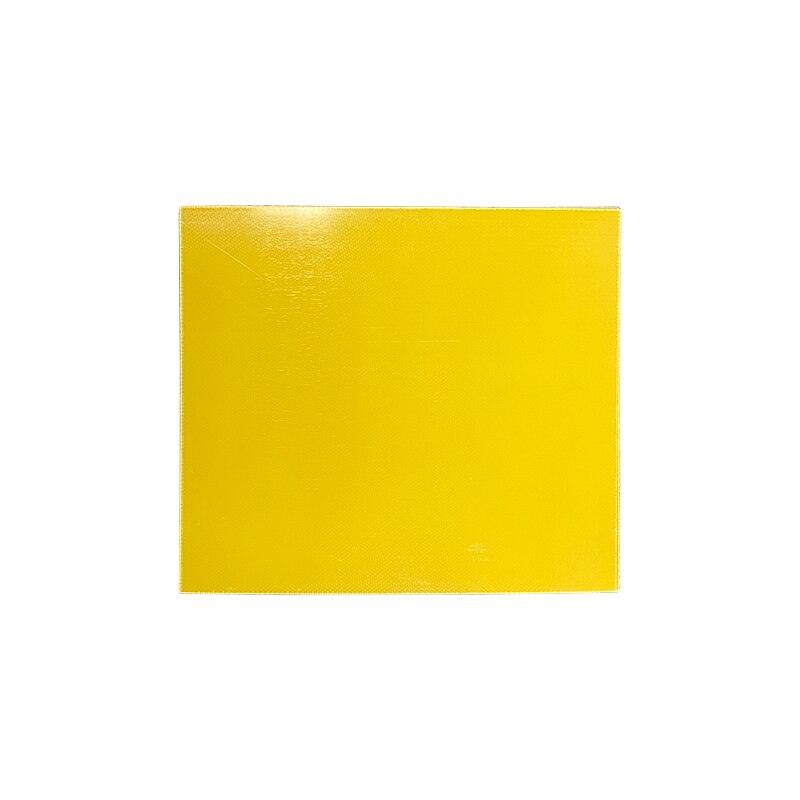

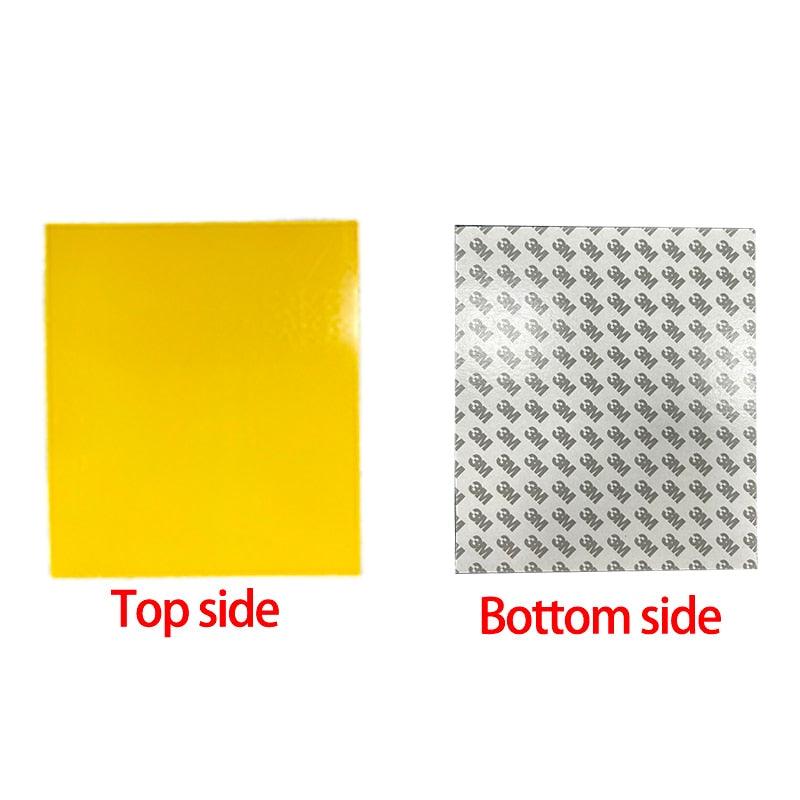

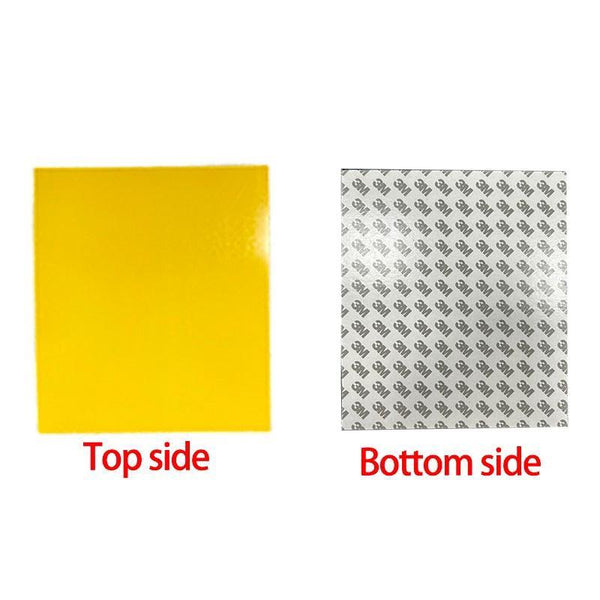

  • Optional Adhesive Backing
    Choose peel-and-stick sheets for faster, cleaner installation.

  • High Voltage & Temperature Resistance
    Withstands up to 130°C and >10kV/mm dielectric strength, suitable for demanding battery applications.

  • Easy to Work With
    Can be cut with scissors or utility knife; install in minutes.


📐 Technical Specifications

  • Material: FR4 Epoxy Resin (Grade 3240)

  • Size: 203mm × 172mm × 0.5mm = 8” × 6.77” × 0.02”

  • Color: Yellow

  • Temperature Resistance: ≥130°C / 266°F

  • Dielectric Strength: >10kV/mm

  • Variants Available:

    • Standard Sheet

    • Sheet with Adhesive Back Layer

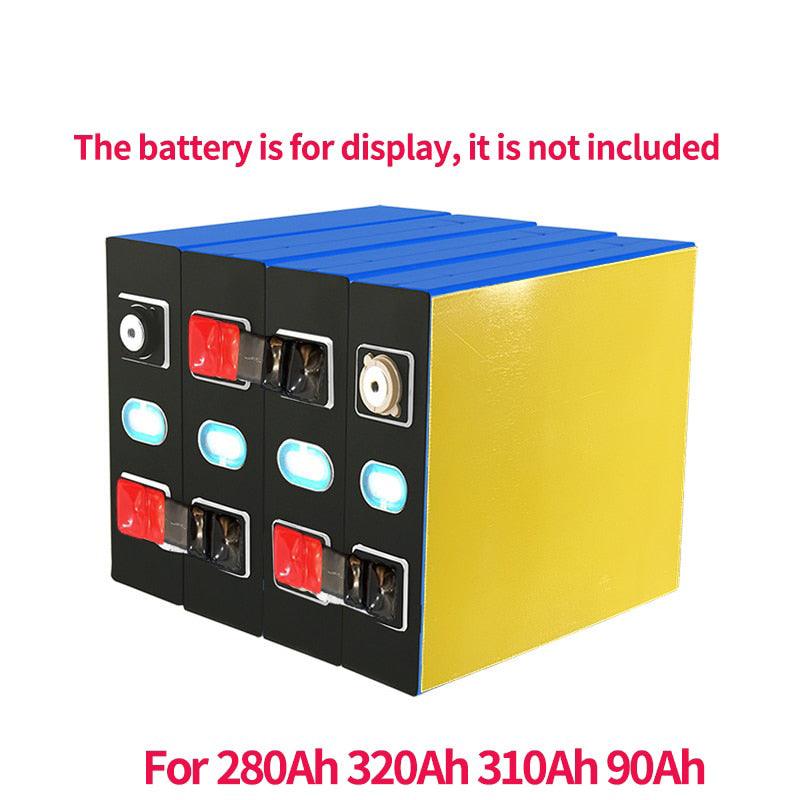

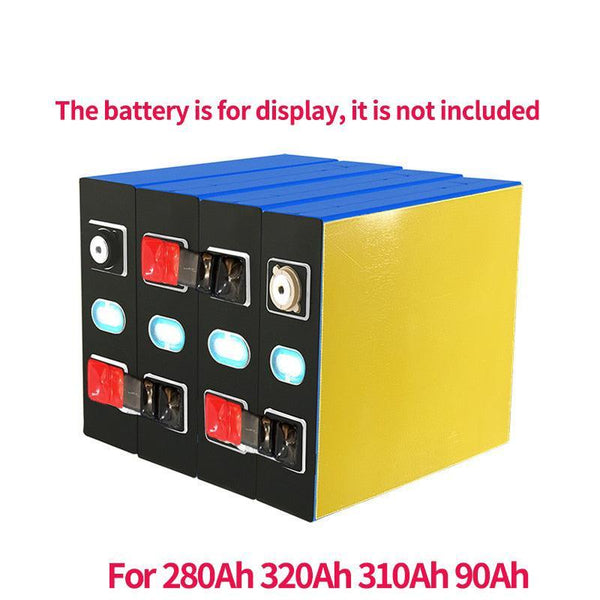

  • Compatible Battery Cells: 3.2V 280Ah / 320Ah / 310Ah / 90Ah

  • Pack Options: 3pcs, 7pcs, 15pcs, 31pcs


🔋 Applications

  • Battery pack separator for DIY 3.2V LiFePO4 modules

  • Insulation barrier for high-capacity energy storage systems

  • Perfect for solar, RV, marine, electric motorcycle and EV builds

  • Used in pack assembly lines, battery research labs, power system prototyping


🏆 Why Choose BeePlastic?

At BeePlastic, we don’t just supply plastic—we help power your project.

  • ✅ Massive Inventory of Plastic Materials
    From FR4 and PTFE to UHMWPE and POM, we carry over 50 industrial plastic types.

  • ⚙️ Custom Processing Services
    Need a custom-cut size? We offer precision CNC cutting and adhesive bonding services.

  • 🤝 Customer-Centric Service
    We answer fast, deliver quickly, and guide you through every step of your order.

  • 💰 We Help You Save
    No unnecessary MOQ, tiered pricing for bulk orders, and smart packaging to reduce freight cost.


🛒 Choose Your Pack and Upgrade Your Battery Build Today

Add to cart now and make your battery assembly safer, more reliable, and longer-lasting.
👉 Need a different size or large bulk order? [Contact Us for a Custom Quote] – We reply within 1 business day.


❓ Frequently Asked Questions

Q: Does this sheet fit 280Ah and 320Ah cells?
A: Yes, the 203×172mm size is designed for 3.2V 280Ah, 320Ah, 310Ah, and similar LiFePO4 cells.

Q: Is the adhesive version easy to apply?
A: Absolutely. Just peel off the protective film and stick the sheet onto your battery terminal. Clean and quick.

Q: How does this compare to Kapton tape?
A: FR4 epoxy insulation offers superior heat resistance, mechanical durability, and long-term stability.

Q: Can I get this in custom shapes or dimensions?
A: Yes! We offer CNC cutting for custom insulation plates—simply reach out via the contact form.

Q: Is this product in stock for bulk orders?
A: Most sizes are stocked for immediate dispatch. For large or custom orders, delivery time is 3–5 business days.
