G10 vs FR4: A Comparison of Glass Epoxy Laminates
When selecting between G10 and FR4, it’s critical to understand their differences. These materials are widely used across industries due to their high strength and excellent electrical insulation properties. However, their compositions and specific properties make each one ideal for different applications. Below, I'll break down the mechanical performance, flame resistance, and material composition of G10 and FR4 to help you decide which is best for your needs.
Composition of G10 and FR4
Both G10 and FR4 are glass epoxy laminates, which means they consist of a woven glass cloth embedded in epoxy resin. This composition gives them their high mechanical strength and dimensional stability. However, the key difference lies in the additives used in the resin. FR4 contains a flame retardant additive, typically bromine, which makes it compliant with UL 94V-0 standards. This flame retardancy is what separates FR4 from G10, as G10 lacks this feature.
Explore our range of glass epoxy laminates for more details.
Mechanical Performance of G10
G10 is well-known for its mechanical strength and rigidity. It is commonly used in industries like aerospace and marine engineering, where structural integrity is paramount. The material is resistant to wear and can endure high stress without losing its shape or properties. This makes G10 a popular choice for mechanical applications such as knife handles, tooling, and support structures.
CNC machining G10 is straightforward, allowing for precise cuts and customizations. This flexibility adds to G10’s appeal, especially for applications requiring high durability.
Flame Resistance of FR4
Where G10 excels in mechanical strength, FR4 stands out for its flame retardant properties. The flame retardancy of FR4, certified by UL 94V-0, makes it the go-to material for electronic applications like printed circuit boards (PCBs). FR4 is crucial in environments where high temperatures and fire safety are concerns. This material can withstand thermal stress while maintaining its electrical insulation capabilities, making it ideal for electrical insulation laminate products.
Discover our flame retardant FR4 options for PCB applications.
Applications of G10 and FR4
The differences in mechanical strength and flame resistance between G10 and FR4 naturally lead to varied applications. G10 applications are primarily mechanical, where its durability and strength are crucial. This includes its use in aerospace, marine parts, and high-performance tools. On the other hand, FR4 applications are focused on electronics, particularly in high-temperature insulation environments, such as printed circuit boards and other electronic components.
Check out our detailed guide on FR4 applications and how they benefit electronics manufacturing.
High-Temperature Insulation and Moisture Resistance
Both G10 and FR4 perform well in high-temperature environments, though FR4 is better suited for thermal stability due to its flame resistance. Both materials have low moisture absorption, which makes them ideal for humid conditions. However, in environments where fire resistance is critical, FR4 is the preferred material.
Learn more about the high-temperature insulation properties of G10 and FR4.
CNC Machining of G10 and FR4
When it comes to machining, both G10 and FR4 are easily CNC machined. Their rigidity and dimensional stability allow for precise cuts and configurations, making them perfect for custom designs in electronic and mechanical applications. While G10 is often used in CNC machining for mechanical parts, FR4 is frequently used in the electronics industry due to its superior flame resistance.
Find out how CNC machining G10 and CNC machining FR4 can improve your projects.
These distinctions between G10 and FR4 highlight how their unique properties make them suitable for different industrial needs. Understanding these differences will help you select the right material for your specific project.
Mechanical Strength of G10: Why It’s Ideal for Industrial Applications
The Superior Mechanical Strength of G10
One of the key reasons G10 is so widely used in various industries is its exceptional mechanical strength. As a glass epoxy laminate, G10 consists of layers of woven glass fabric bonded with epoxy resin, which gives it superior rigidity and durability. This unique combination results in a material that can withstand significant tensile and compressive forces without compromising its structure. Because of its high strength-to-weight ratio, G10 is frequently employed in high-stress environments where mechanical performance is critical.
Explore our collection of G10 sheets for your high-performance applications.
Applications in Aerospace
In the aerospace industry, G10 is a favored material due to its ability to endure extreme stress without deformation. Components made from G10 are often used in aircraft interiors, insulating parts, and structural components where lightweight durability is essential. Its high mechanical strength ensures that it can withstand the constant mechanical forces exerted during flight operations and maintain dimensional stability at high altitudes.
Aerospace engineers rely on G10 components for their ability to withstand demanding operational conditions.
Marine Industry Applications
G10 is also highly valued in the marine industry because of its corrosion resistance and strength in moist and humid environments. G10’s low water absorption makes it particularly suited for marine applications, such as boat hulls, decking, and machinery components that need to withstand saltwater exposure and constant wear. Moreover, its resistance to deformation under load ensures long-term reliability, even in high-stress applications like rigging components and marine insulation.
Learn more about G10’s marine applications and how it can improve performance in sea environments.
Mechanical Components in High-Stress Environments
Beyond aerospace and marine applications, G10 is used in various mechanical industries where strength and reliability are non-negotiable. Its toughness and resistance to wear make it the perfect choice for machinery components, high-impact tooling, and heavy-duty insulators. Whether in industrial manufacturing or high-performance tools, G10 stands up to repeated mechanical stresses, providing consistent performance over time. Its ability to be easily CNC machined further enhances its versatility, allowing manufacturers to create precision components tailored to specific needs.
Consider CNC machining G10 for custom, high-performance industrial components.
High-Temperature Performance
In high-stress industrial settings, G10 must often perform in elevated temperatures without losing its mechanical properties. Fortunately, G10’s thermal stability allows it to maintain its structural integrity even in high-temperature environments. This makes it suitable for electrical insulation applications where heat resistance is critical, such as in transformers, switchgear, and high-power industrial equipment.
Discover how G10’s thermal stability can benefit your high-temperature applications.
Flame Retardant FR4: The Key to Safe Printed Circuit Boards
Understanding FR4’s Flame Resistance
FR4 is widely recognized for its flame retardant properties, which are critical in industries that prioritize fire safety. As a glass epoxy laminate, FR4 contains bromine additives that provide it with a self-extinguishing capability. This feature is measured by the UL 94V-0 certification, a stringent standard for flame resistance. Materials that meet this certification must be able to withstand direct flame exposure and self-extinguish within 10 seconds, ensuring that they do not contribute to the spread of fire. This makes FR4 a go-to material for electronic insulation and printed circuit boards (PCBs), where fire hazards are a constant concern.
Explore our range of UL 94V-0 certified FR4 materials to enhance fire safety in your projects.
FR4’s Critical Role in Printed Circuit Boards (PCBs)
In the world of electronics manufacturing, FR4 is indispensable for printed circuit boards (PCBs). PCBs are the backbone of nearly all electronic devices, from computers to smartphones. These boards must endure high temperatures during operation, and the materials used must not only resist heat but also ensure electrical insulation. This is where FR4 excels. Its flame retardancy protects the circuitry from potential overheating and fire hazards, making it the preferred material in high-temperature environments.
For more information on FR4’s role in PCBs, check out our in-depth guide.
High-Temperature Applications of FR4
FR4 is particularly valued in high-temperature applications because it remains stable under thermal stress. This characteristic makes it ideal for electronics that operate in demanding environments, such as automotive electronics, aerospace control systems, and industrial machinery. FR4’s flame retardancy not only ensures safety but also enhances the durability of the electronics, protecting sensitive components from the risks of thermal damage.
See how FR4 materials can protect your high-temperature electronics from fire risks.
Electrical Insulation Properties
Beyond its flame resistance, FR4 also boasts excellent electrical insulation properties, making it indispensable in the electronics sector. The material’s low water absorption ensures that its dielectric properties remain stable even in humid environments, adding another layer of protection to sensitive electronic circuits. Its dimensional stability under thermal stress further ensures that FR4 maintains its insulation properties in fluctuating temperatures, making it ideal for power distribution systems, transformers, and switchgear.
Learn more about FR4’s electrical insulation properties and how they can benefit your next project.
FR4 in High-Risk Electronic Components
FR4 is frequently used in critical electronic components where fire safety is a concern. Its ability to self-extinguish upon exposure to flames makes it ideal for power supply units, motor controllers, and battery management systems. In these applications, the materials must resist short circuits and overheating, both of which can lead to fire. By utilizing FR4, manufacturers ensure that these components are safer, reducing the risk of fire-related failures.
Discover how FR4 materials can improve fire safety in high-risk electronics.
High-Temperature Insulation: G10 and FR4 Performance Under Heat
When it comes to high-temperature insulation, both G10 and FR4 are widely used in industrial applications due to their ability to withstand extreme heat. However, there are key differences in their thermal stability, especially when moisture or humidity is introduced into the environment. Understanding how these materials perform under heat can help you choose the right one for your project.
G10’s Thermal Stability
G10, a glass epoxy laminate, is known for its high mechanical strength and rigidity, even in high-temperature environments. While G10 does not possess the flame retardant properties of FR4, it is still highly effective as a thermal insulator. G10 can maintain its structural integrity in temperatures reaching up to 140°C (284°F). This makes it suitable for aerospace and marine applications, where it often encounters elevated temperatures without compromising its mechanical performance.
Learn more about G10’s thermal properties for your next high-stress application.
FR4’s Thermal Performance and Flame Retardancy
Where G10 excels in mechanical strength, FR4 stands out for its flame retardancy and thermal stability. FR4 is designed to withstand higher temperatures while providing self-extinguishing properties under fire. Certified to UL 94V-0, FR4 can perform in environments that reach up to 180°C (356°F), maintaining its electrical insulation properties while ensuring flame resistance.
FR4’s combination of thermal stability and flame resistance makes it the preferred choice in high-temperature electronic environments, such as printed circuit boards (PCBs), transformers, and high-voltage insulation. In these applications, FR4 not only prevents the spread of fire but also protects sensitive electronic components from thermal damage.
Check out our FR4 products for enhanced thermal insulation and fire safety.
Moisture and Humidity Performance of G10 and FR4
Both G10 and FR4 offer excellent moisture resistance, making them suitable for environments where humidity is a factor. G10’s low water absorption ensures that it maintains its dimensional stability even in humid conditions. This characteristic is particularly beneficial in marine and outdoor applications, where the material is exposed to moisture without losing its insulating properties.
On the other hand, FR4 not only retains its moisture resistance but also maintains electrical insulation even in damp environments. This is why FR4 is preferred in electronics and power distribution systems, where humidity can affect insulation performance. Whether used in industrial machinery or electrical enclosures, FR4’s ability to withstand moisture ensures that it continues to perform reliably in challenging conditions.
Explore our guide to FR4 applications in humid and high-temperature environments.
Choosing Between G10 and FR4 for High-Temperature Applications
The choice between G10 and FR4 for high-temperature insulation largely depends on the specific requirements of the application. If flame resistance and high-temperature tolerance are priorities, FR4 is the better choice due to its UL 94V-0 rating and ability to operate safely in electronic and high-voltage environments. For applications that demand mechanical strength in high-stress and moisture-prone conditions, G10 is more suitable.
Decide between G10 and FR4 for your next project based on their thermal performance and insulation properties.
Applications of G10 and FR4 in Aerospace and Electronics
Both G10 and FR4 play critical roles in aerospace and electronics due to their unique properties. While G10 is valued for its mechanical strength and durability in high-stress environments, FR4 is prized for its flame resistance and electrical insulation properties, making it a staple in printed circuit boards (PCBs) and other electronic components. Understanding the specific applications of each material helps in selecting the right one for the appropriate industrial use.
G10 in Aerospace Applications
In the aerospace industry, G10 is highly sought after for its exceptional mechanical strength and dimensional stability. This material is capable of withstanding extreme stress and vibration, which are common in aerospace applications. The glass epoxy laminate structure of G10 provides both rigidity and impact resistance, making it ideal for structural components such as insulating brackets, mounting systems, and reinforcement parts in aircraft interiors.
Moreover, G10’s low moisture absorption and thermal stability make it suitable for environments where temperature fluctuations and humidity are constant factors. G10 maintains its mechanical integrity even in harsh conditions, which is critical in the aerospace industry, where material failure is not an option. Additionally, G10 components can be precisely fabricated using CNC machining, allowing for high customization in aerospace designs.
Explore our range of G10 aerospace components for high-performance applications.
FR4 in Electronics
FR4 is the standard material for printed circuit boards (PCBs) due to its flame retardant properties and excellent electrical insulation. Certified under UL 94V-0, FR4 can withstand high temperatures while maintaining its insulating properties, making it indispensable in electronics manufacturing. The use of FR4 in PCBs ensures that electronic circuits are protected from overheating, short circuits, and other risks associated with high-temperature environments.
Aside from PCBs, FR4 is used in a wide variety of electrical components, including transformers, power supply units, and relays. Its low water absorption and high dielectric strength also make it perfect for high-voltage insulation in electrical systems, where maintaining electrical stability is paramount.
Check out our selection of FR4 materials for reliable electrical insulation in electronics.
Why Mechanical Strength Matters in Aerospace
The extreme conditions in aerospace applications demand materials that can handle intense mechanical stress and vibrations. G10’s superior strength comes from its glass fiber reinforcement, which provides a unique balance of tensile and compressive strength. This makes G10 ideal for structural components that need to bear heavy loads without flexing or breaking under pressure. In particular, aerospace engineers use G10 for airframe components, interior panels, and mounting systems that must resist wear and impact during flight operations.
Learn more about G10 applications in structural and high-stress aerospace environments.
The Importance of Flame Retardancy in Electronics
In contrast, FR4 is crucial for fire safety in electronics. Its flame retardancy prevents fires from spreading within electrical systems, especially in densely packed circuit boards. As electronic devices continue to become more compact and powerful, the heat generated by their components increases, raising the risk of thermal damage. FR4 mitigates this risk by offering high-temperature insulation and self-extinguishing properties, ensuring that electronic circuits remain protected.
For this reason, FR4 is the preferred material in telecommunications, industrial control systems, and consumer electronics that require stringent fire safety standards.
Discover our full range of FR4 solutions for electronic manufacturing.
G10 and FR4: A Perfect Balance in High-Performance Applications
When considering aerospace and electronics applications, G10 and FR4 offer distinct advantages. G10’s mechanical strength and durability make it the best choice for high-stress environments, while FR4’s flame resistance and electrical insulation make it indispensable in electronic systems. Both materials can be CNC machined for precise customization, ensuring they meet the exact needs of each industry.
Find out how G10 and FR4 can enhance your next aerospace or electronics project.
These insights into the applications of G10 and FR4 demonstrate their critical roles in modern technology, helping manufacturers achieve the perfect balance between mechanical performance and safety.
CNC Machining G10 and FR4: Which Material Is Easier to Machine?
When it comes to CNC machining, both G10 and FR4 are frequently used in industrial and electronic components due to their versatility and mechanical strength. However, the ease of machining these materials varies because of their distinct properties. Understanding the differences between G10 and FR4 in the CNC machining process can help manufacturers select the right material for their specific needs.
G10 Machinability: Rigidity and Precision
G10 is a highly rigid glass epoxy laminate that offers exceptional mechanical strength. Its rigidity is both a benefit and a challenge in the CNC machining process. While the material provides excellent dimensional stability and strength, its hardness can cause tool wear during extended machining operations. CNC tools must be highly durable and equipped with diamond-coated or carbide-tipped blades to handle the abrasive nature of G10.
Despite this, CNC machining G10 results in precisely shaped components that retain their integrity in high-stress environmentsFR-4 G10 Fiberglass Epoxy Sheets | Durable G10 Material & Laminates – beeplastic. This is particularly useful in industries such as aerospace and marine applications, where tough, reliable parts are necessary. However, due to its high rigidity, G10 machining requires careful control of the feed rate and cutting speed to avoid chipping or delamination of the material.
Explore our advanced CNC machining services for G10 parts with tight tolerances.
FR4 Machinability: Ease and Efficiency
Compared to G10, FR4 is generally considered easier to machine. Although both materials share similar compositions (glass cloth reinforced with epoxy resin), FR4 is slightly less rigid due to the addition of flame retardant additives. This makes FR4 less prone to tool wear during the CNC machining process, allowing for smoother cutting and milling.
CNC machining FR4 is commonly done for printed circuit boards (PCBs), electrical enclosures, and other electronic components. The material’s ability to withstand high temperatures while maintaining dimensional accuracy makes it an ideal candidate for complex electronic assemblies. Additionally, FR4’s flame retardancy makes it a safer option when machining parts for high-temperature environments.
Check out how our CNC machining capabilities can streamline the production of FR4 electronic components.
Comparing Rigidity and Machining Techniques
The primary difference between G10 and FR4 in terms of machining lies in their rigidity and how this affects the CNC process. G10’s higher rigidity often results in more tool wear and slower machining times, whereas FR4’s slightly softer nature makes it easier to machine with standard CNC tools.
For complex designs that require high precision, G10 can provide superior results if the CNC process is carefully managed. On the other hand, FR4 is preferred when time efficiency and ease of machining are the main priorities. Both materials can be laser cut or milled to produce intricate components, but G10 may require more advanced machining techniques due to its hardness.
Learn more about the differences between G10 vs FR4 in industrial machining applications.
CNC Machining for Industrial and Electronic Components

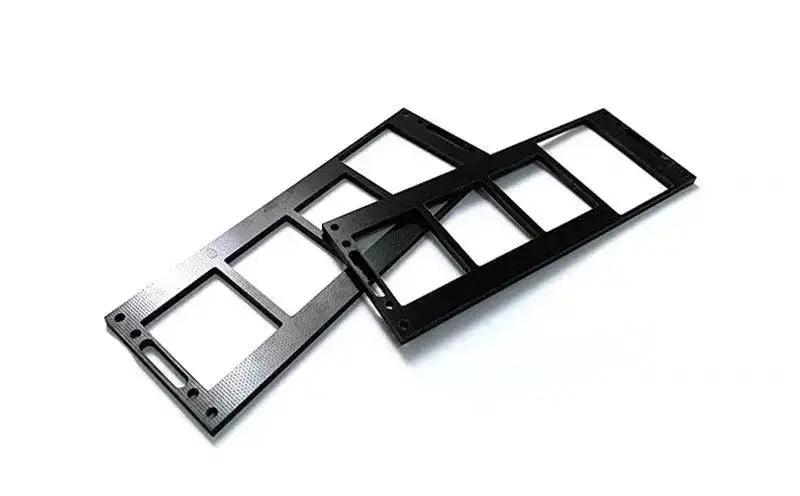

Whether you're machining G10 for mechanical parts or FR4 for electronic insulation, the CNC process ensures high-precision results. Both materials can be milled, cut, or engraved to exact specifications, making them ideal for use in industrial machinery, electronics, and aerospace applications. However, selecting the right material depends on the specific needs of your project, including durability, flame resistance, and machining complexity.
Explore our expert CNC machining services for high-quality G10 and FR4 components.
Final Thoughts on G10 vs FR4 in CNC Machining
When comparing the CNC machinability of G10 and FR4, each material presents its own set of advantages and challenges. G10’s rigidity makes it highly durable but more difficult to machine, while FR4’s flame retardancy and ease of cutting make it a preferred choice for electronic applications. Understanding these differences ensures that the material chosen will meet the specific demands of the project, whether it’s for high-temperature environments or high-stress mechanical applications.
For more details on which material is right for your project, explore our in-depth guides on G10 and FR4 applications in CNC machining.
These expanded paragraphs provide a detailed comparison of CNC machining G10 and FR4, highlighting the advantages and challenges of each material in various industries.
