bakelite plate

bakelite material

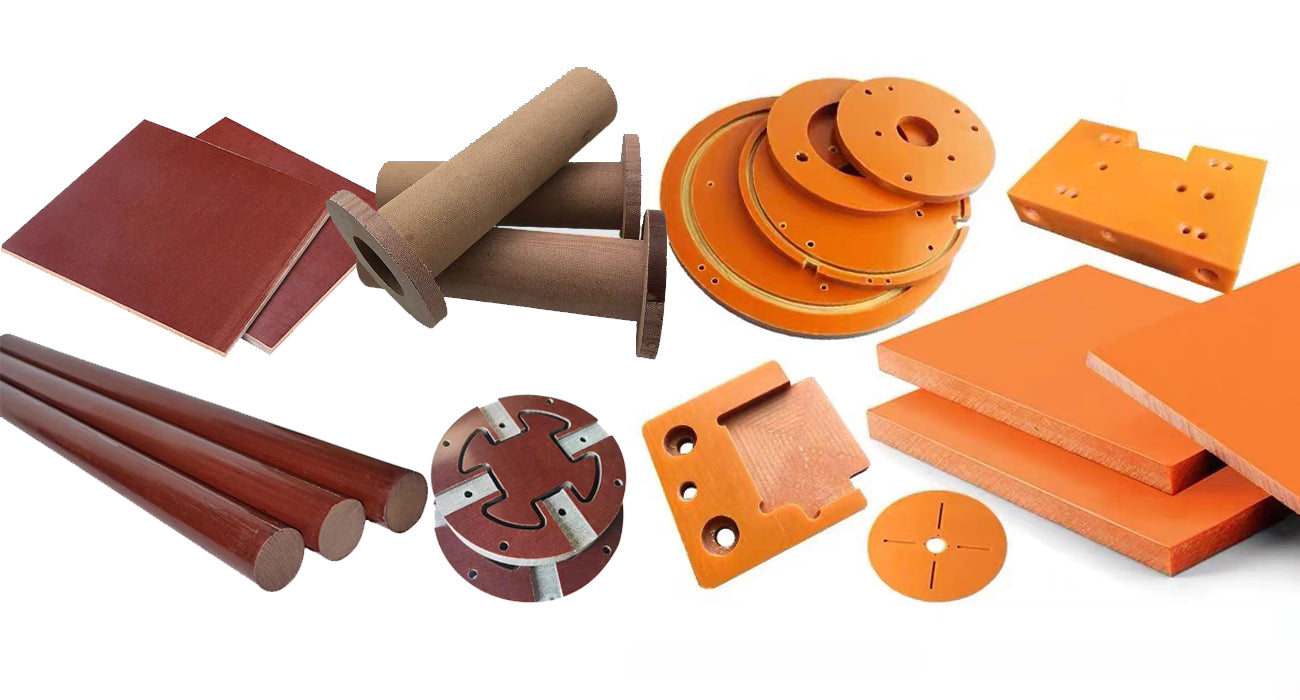

Introduction to Bakelite Plate:

Bakelite plate is a type of thermosetting plastic made from phenol-formaldehyde resin. It was one of the earliest plastics to be invented, and it revolutionized the field of materials engineering in the early 20th century. Bakelite plate has excellent electrical insulation properties, is resistant to heat and chemicals, and has high mechanical strength. These properties make it a popular choice in a wide range of applications.

Product Features:

  • Excellent electrical insulation properties
  • Resistant to heat and chemicals
  • High mechanical strength
  • Easy to machine and fabricate
  • Available in a variety of sizes and thicknesses
  • Can be customized to meet specific needs


Bakelite plate is used in a variety of applications across different industries, including:

  • Electrical: electrical insulators, switches, connectors, and components
  • Automotive: ignition systems, distributor caps, and rotor arms
  • Aerospace: components and structural parts
  • Industrial: gears, bearings, and bushings
  • Consumer goods: kitchen utensils, radios, and telephones


Bakelite plate is available in a variety of colors, including black, brown, and white.

Material Performance Report:

The table below shows the typical properties of bakelite plate.

Property Value
Density 1.4-1.5 g/cm³
Tensile Strength 70-120 MPa
Compressive Strength 200-400 MPa
Flexural Strength 100-200 MPa
Hardness 70-110 Rockwell M Scale
Water Absorption <1%
Heat Deflection Temp 150-200°C
Dielectric Strength 10-20 kV/mm

Customization Advantage:

At our company, we specialize in customizing bakelite plate to meet specific customer requirements. Our team of experienced engineers can work with you to design and fabricate a product that meets your unique needs. We have the capability to work with a wide range of CAD and other design software to ensure that we can work with your existing designs or create new ones from scratch. Our state-of-the-art manufacturing facility is equipped with the latest equipment to ensure that we can deliver high-quality products that meet your exact specifications. Please contact us to discuss your custom bakelite plate needs.
